NS Bikes Fuzz 29 1 DH 2022 Fahrrad > MTB / Cross > Fully

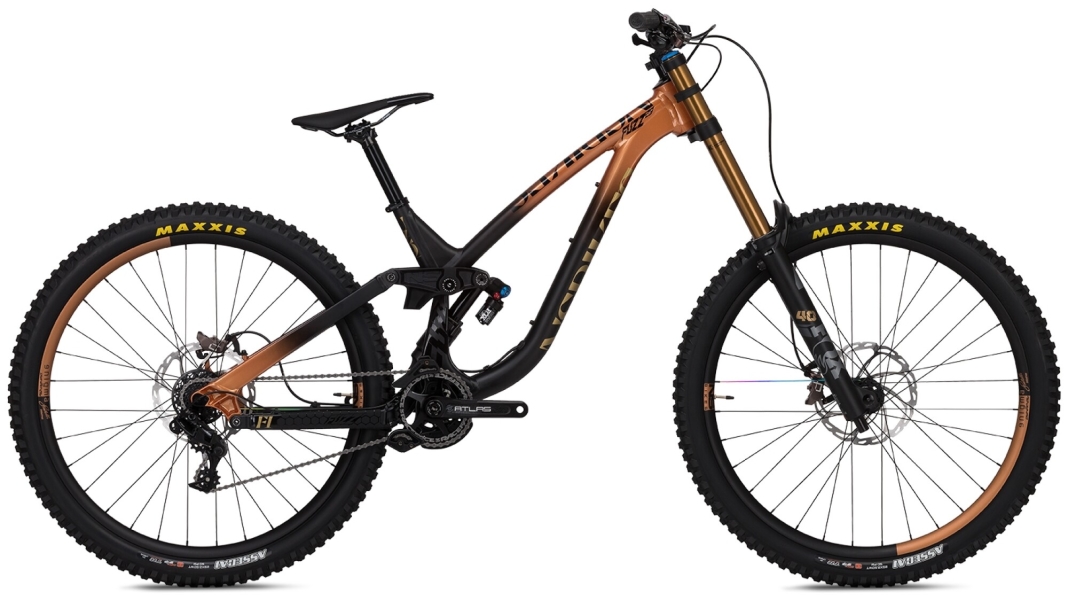

Fuzz 29 1 DH

Fuzz 29 1 DH - das weltcuperprobte Top-Modell des Downhill-Bikes von NS-Bikes. Das Fuzz 1 ist ausgestattet mit der leistungsfähigen Fox Factory 40 Float Federgabel und Fox Performance Float X2 Dämpfer. Der Zuverlässige 7-Gang SRAM GX DH Antrieb und bissige Hayes Dominion Bremsen machen das Bike zur ersten Wahl für alle, die auf der Jagd nach Sekunden sind.

Ausstattung:
RAHMEN: NS Bikes Fuzz 29, 190mm Federweg, AL6061-T6 + AL6066-T6, verstellbarer Reach
GABEL: Fox Factory 40 FLOAT, 200mm Federweg
DÄMPFER: Fox Performance Float X2 Trunnion
ANTRIEB: SRAM GX DH X-Horizon 1x7
SCHALTHEBEL: SRAM GX DH, 1x7
KASSETTE: SRAM PG-720 DH, 11-25T, 1x7
VORDERBREMSE: Hayes Dominion A4, 200mm
HINTERBREMSE: Hayes Dominion A4, 200mm
KURBEL: Race Face Atlas 165mm, 36T
SATTELSTÜTZE: Kalloy, 30.9mm
SATTEL: WTB Volt Medium Cromoly
LENKER: NS Bikes Licence 31.8, 820mm, 38mm Rise
VORBAU: NS Bikes Direct Mount 31.8 (40-48mm / 2 Positionen)
NABE VORNE: NS Bikes Rotary 20 Boost 20x110 (gedichtete Lager)
NABE HINTEN: NS Bikes Rotary Cassette 157x12mm (gedichtete Lager)
FELGEN: NS Bikes Enigma Rock 29", 32h, tubeless ready
REIFEN VORNE/HINTEN: Maxxis Assegai MaxxGrip 3C DH TR 29.5x2.50”
TRETLAGER: Race Face BSA 83mm
STEUERSATZ: NS Bikes custom 1.5" EX56/56, gedichtete Lager, reach adjustable offset cups (+/- 16mm)
GRIFFE: NS Bikes Hold Fast supersoft
SPEICHEN: Spokes 14mm nipples
KETTE: SRAM PC-1110, 1x7
KETTENFÜHRUNG: Mozartt Presto Alu mit bashguard
GEWICHT (KG): ca. 16.7 kg *Größe M, tubeless
