NS Bikes Define AL 170/1 29"/650B (mix) Enduro/AM 2022 Fahrrad > MTB / Cross > Fully

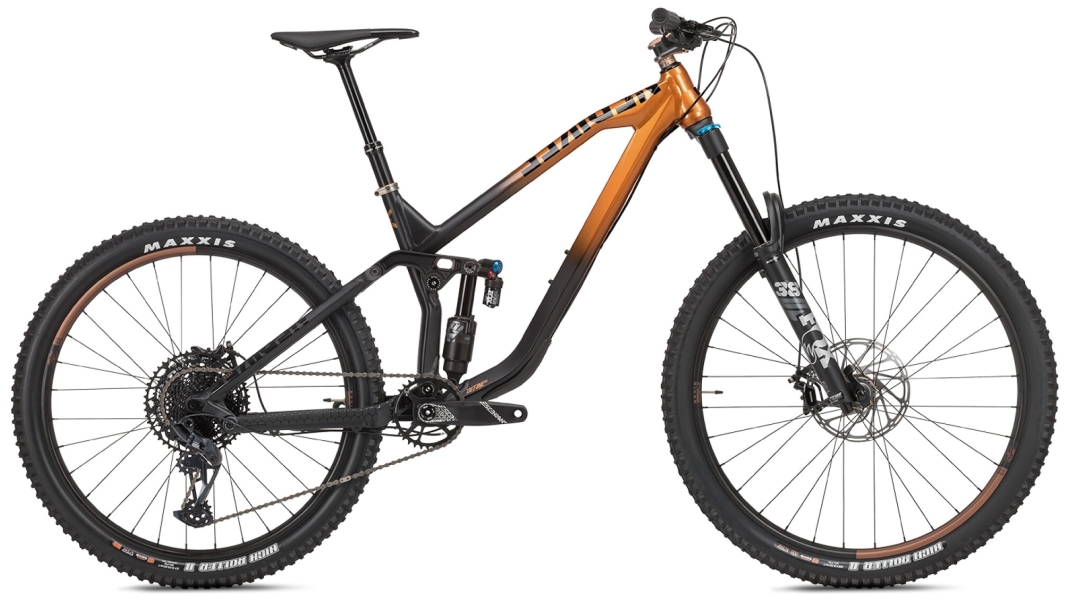

Define AL 170/1 29"/650B (mix) Enduro/AM

Das Define AL 170 1 ist der absolut bikeparkfähige Enduro-Bolide als Mullet mit 29" Vorder- und 27.5" Hinterreifen und einem robusten Aluminium-Rahmen mit halbintegrierter Kabelführung. Mit satten 170mm Federweg hinten und einer massiven 180mm Gabel vorne, kann das Define AL 170 1 bei jeder Geschwindigkeit problemlos über alle Unebenheiten auf Trails und Downhillstrecken rollen.
Das größte Bike der Define Modelle sieht sich als Crossover zwischen Enduro und Downhill und kombiniert die Vorteile beider Disziplinen. Das Defeine AL 170 1 kommt mit hochwertiger Fox Gabel und Dämpfer und in diesem Jahr neu mit Race Face Dropper Post.

Ausstattung:
RAHMEN: NS Bikes Define AL, 170mm Federweg, AL6061-T6 + AL6066-T6
GABEL: Fox Performance 38 Float Grip, 180mm Federweg, 3 Positionen
DÄMPFER: Fox Performance Float X2 2 Positionen
ANTRIEB: SRAM GX Eagle Lunar, 1x12
SCHALTHEBEL: SRAM NX Eagle, 1x12
KASSETTE: SRAM PG-1210, 11-50T, 1x12
VORDERBREMSE: SRAM Guide RE, 200mm
HINTERBREMSE: SRAM Guide RE, 200mm
KURBEL: Truvativ Descendant 6K DUB 170mm, 34T
SATTELSTÜTZE: Race Face Aeffect R 125mm (S), 150mm (M), 170mm (L), 31,6mm
SATTEL: WTB Volt Medium Cromoly
LENKER: NS Bikes 35, 800mm, 20mm Rise
VORBAU: NS Bikes Quantum Lite 35, 45mm
NABE VORNE: NS Bikes Rotary 110x15mm Boost (gedichtete Lager)
NABE HINTEN: NS Bikes Rotary Cassette 148x12mm Boost (gedichtete Lager)
FELGEN: Octane One Solar 29" / 27.5", 32h, tubeless ready
REIFEN VORNE/HINTEN: Maxxis High Roller II 29x2.50" WT TR EXO / 27.5x2.40" TR DH
TRETLAGER: SRAM DUB BSA 73mm
STEUERSATZ: GW integrated tapered IS42/IS52, gedichtete Lager
GRIFFE: NS Bikes Hold Fast supersoft
SPEICHEN: Spokes 14mm nipples
KETTE: SRAM SX Eagle, 1x12
GEWICHT (KG): ca. 16,2 kg *Größe M, tubeless
