Brakes	Shimano, AMT200, hydraulic disc brake
Brake levers	Shimano, BL-MT200
Frame	Aluminium 6061
Drivetrain	Shimano, Deore, RD-M592, 27-speed, derailleur
Shift levers	Shimano, Alivio, SL-M4000
Front derailleur	Shimano, Alivio, FD-T4000
Number of gears	27
Fork	Suspension fork, Suntour, XCT HLO, hydraulic lockout, 100 mm travel
Fork travel (mm)	100
Bottom bracket	Shimano, ES300, Octalink
Crankset	Shimano, Alivio, FC-T4010, 44/3/22 teeth, 170 mm
Sprocket	Shimano, HG-200, 9-speed, 11–34 teeth
Drive	KMC, X9
Headset	MATRIX, Ahead, 1 1/8 inches
Handlebar	MATRIX, AL-320BT, 31.8 mm, width 700 mm, bend 9 degrees, rise 20 mm
Grips	MATRIX, VLG-1777D2, exercise handles
Stem	MATRIX, Ahead, aluminium, black
Saddle	MATRIX MTB, D5266
Seatpost	MATRIX, Patent, Aluminium
Rims	Hollow section, aluminium, 32 holes
Tires	Schwalbe, Smart Sam, Reflex, 57-622
Spokes	Stainless steel, black
Pedals	MATRIX FP-803ZU
Front light	MATRIX, LED, 20 LUX
Rear light	MATRIX, LED, parking light function
Mudguards	SKS, Velo
Kickstand	Atran Velo, Parko, rear bike stand

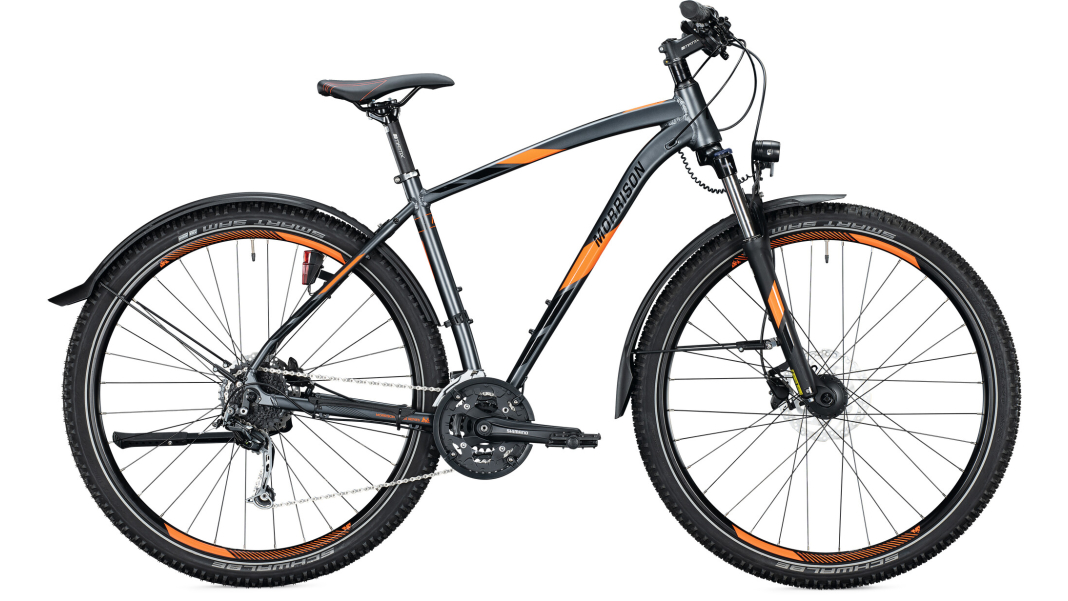

MORRISON XM 5.0
