Brakes	Magura, ABS CT-E STOP, hydraulic disc brake
Brake levers	Magura
Frame	Aluminium 6061
Drivetrain	Shimano, Deore, RD-M5130, 10-speed, derailleur
Shift levers	Shimano, Deore, SL-M5130
Number of gears	10
Fork	Suspension fork, Suntour, Mobie 34 AIR, lockout, 15 mm thru-axle, 63 mm travel
Fork travel (mm)	63
Crankset	MATRIX, Delta, 38 teeth, 165 mm
Sprocket	Shimano, Linkglide, CS-LG600, 10-speed, 11–43 teeth
Drive	Shimano, CN-LG500
Headset	VP-J305AM, semi-integrated, taper, cartridge
Handlebar	MATRIX by Ergotec, Ergo M, 31.8 mm, width 640 mm, bend 10 degrees, rise 30 mm
Grips	Herrmans, DD36
Stem	MATRIX by Ergotec, Octopus 2, 31.8 mm, 90 mm, angle-adjustable
Saddle	Selle Royal, EZONE
Seatpost	MATRIX, SP-DC1, 31.6 mm x 300 mm, aluminium
Rims	Hollow section, aluminium, 32 holes, stainless steel eyelets
Tires	Schwalbe, Energizer Active Plus, Reflex, 55-622
Spokes	Stainless steel, black, reinforced at the back
Pedals	Marwi, SP-828
Front light	Litemove 130 LUX, high-beam function with additional handlebar button
Rear light	Herrmans, H-Cargo LED
Mudguards	MATRIX, CP65, 65 mm plastic profiled sheet
Kickstand	Ursus, King 2, KSA 40 mm, rear stand
Rack	Massload, aluminium, MIK system, spring-loaded flap
Motor manufacturer / model	Bosch, Performance Line CX, 250 W, 85 Nm, mid-drive motor
Display	Bosch Kiox
Battery	Bosch, Powertube, 750 Wh, integrated
Battery capacity (Wh)	750

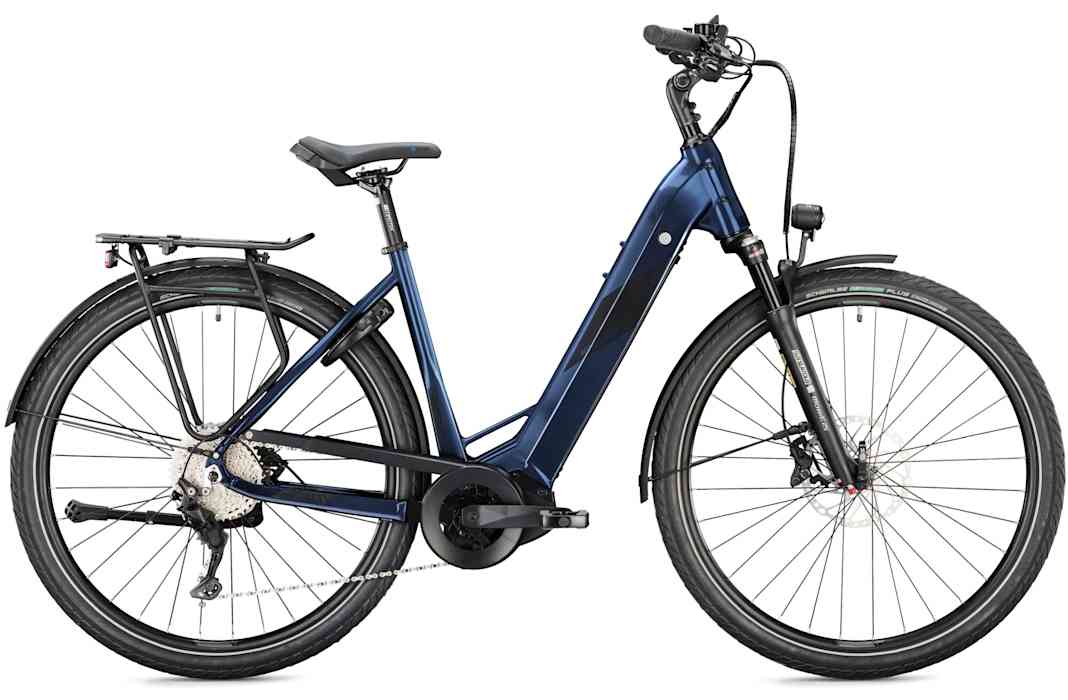

MORRISON E 10.0 750 Wave dark blue

Equipment
