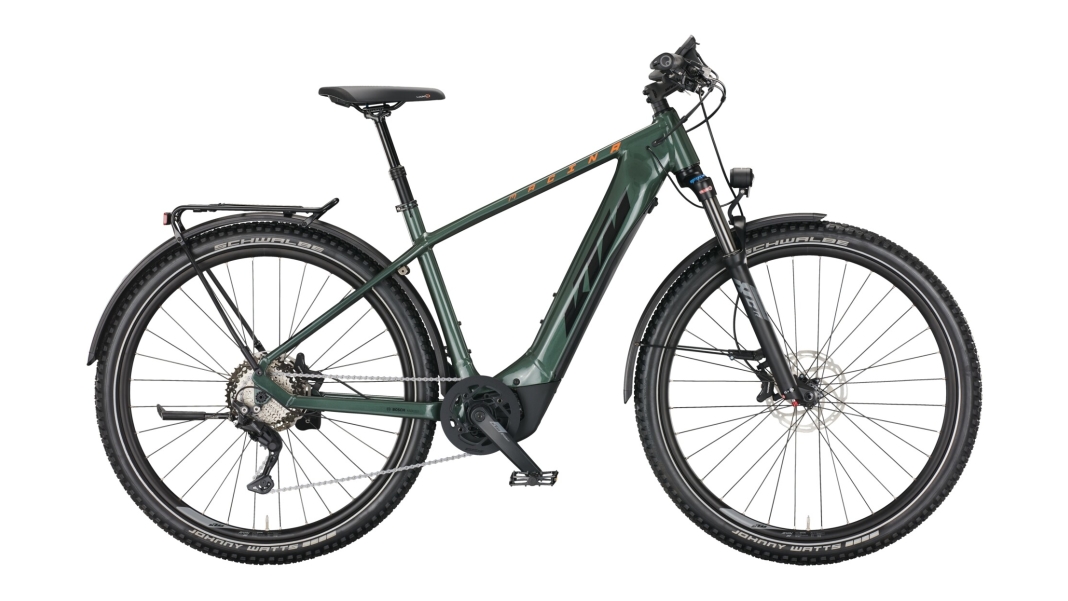

KTM MACINA TEAM 691 LFC

The 2022 KTM MACINA TEAM 691 LFC is a high-quality e-mountain bike designed for discerning riders. Priced at 3999 EUR, it offers a wide range of technical features and specifications that are suitable for both off-road riding and everyday use.

The bike’s frame is made from Macina MTB 29" Alloy 6061 and is fitted with a Bosch Gen.4 motor (PERFORMANCE CX), which delivers 85Nm of torque and assists up to speeds of 25 km/h. The integrated Bosch PowerTUBE battery, with a capacity of 625 Wh, ensures a long range and is complemented by a Bosch STANDARD Charger 4A. The bike’s maximum permissible weight is 146 kg, whilst its kerb weight is 26 kg.

Braking performance is provided by Tektro HD-M535 4-piston brakes in combination with Tektro TR-45 brake discs (2.3 mm CL 180 at the front and rear). Gear changes are handled by the Shimano Deore M5130-10 LG shadow+ system, which enables precise shifting. The shift levers are also by Shimano (M5130-10 LG display).

The Suntour XCR 34 Air 29" LOR fork, with 120mm of travel and a 15x110mm axle, ensures excellent damping and control on uneven terrain. For optimum visibility, the bike is fitted with a Litemove SE-150 LED front light, which provides 150 lux.

Other features include MTB flat pedals (VPE-527) made from aluminium, a KTM COMP ISIS crankset (170mm Q16), as well as a Shimano LG600-10 cassette (11–43) and Shimano LG500 drivetrain. The handlebars are KTM Comp Rizer15 with a width of 700mm, complemented by Ergon GP1 SD grips and a KTM Team MTB stem with a 7° angle. The headset is a KTM Team MTB 1.1/8"-1.5" angle limit.

The tyres are Schwalbe Johnny Watts Perf. DD RaceGuard (60-622) at both the front and rear, fitted to a robust wheelset comprising KTM Line - Shimano MT410B CL 32H (front) and MT400B CL 32H (rear) rims, as well as DT Champion 2.0 black (front) and DT Alpine II 2.34 black (rear) spokes.

The Selle Royal Lookin Athletic saddle ensures comfort, whilst the KTM Comp dropper seatpost allows for a variable seat height. Aluminium mudguards from Racktime (72mm B&M Xeltec), an adjustable KTM 28" kickstand and a Wingee alloy luggage rack with Snap-it 1.0 platform round off the specification.

The Bosch INTUVIA LCD display with remote control offers simple and intuitive operation of the e-bike system, ensuring the rider always has all the key information at a glance.

In summary, the KTM MACINA TEAM 691 LFC offers a well-thought-out combination of a powerful drive, robust design and versatile features, making it an ideal companion for a wide variety of riding conditions.
