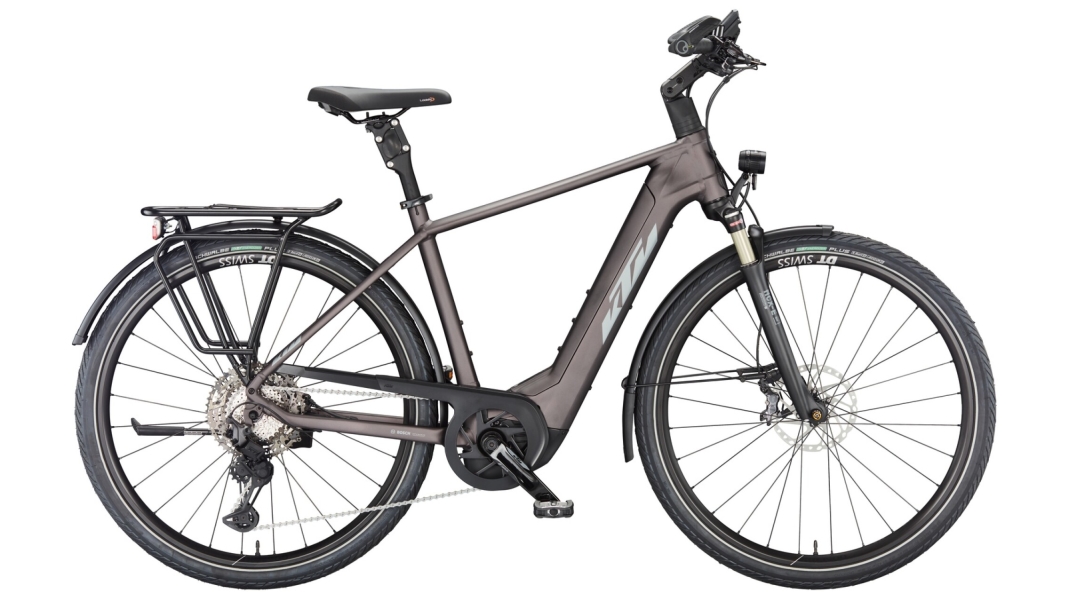

KTM MACINA STYLE 710

The 2023 KTM MACINA STYLE 710 is a high-quality e-bike that stands out for its well-thought-out features and powerful technology. The frame is made from Macina Trekking Onroad Alloy 6061 and is fitted with a Bosch Gen.4 motor, which delivers 85 Nm of torque and enables speeds of up to 25 km/h. The integrated Bosch PowerTUBE battery, with a capacity of 750 Wh, ensures an impressive range. The bike’s total weight is 26 kg, and it can carry a maximum load of up to 146 kg.

The model’s brakes are Shimano Deore XT T8100 / M8120 4-piston calipers, which ensure excellent braking power and safety. Gear changes are handled by the Shimano Deore XT M8130-11 LG shadow+ system, supported by Shimano Deore XT M8130-11 LG shift levers. The Suntour NCX-E Air LO fork, with 63 mm of travel and 15QLC technology, ensures a comfortable ride even on uneven terrain.

For optimum visibility in traffic, the bike is fitted with a B&M Lumotec IQ-XM LED front light (120–170 lux) and a B&M Type 340 brex LED rear light. The VP-616 trekking pedals are non-slip and offer a secure grip. The KTM E-TEAM ISIS crankset has a length of 170 mm, whilst the Shimano LG400-11 cassette offers a gear ratio of 11–50. Power is transmitted via a KMC e11 Sport EPT chain, which is specially designed for e-bikes.

The KTM Line Rizer20 handlebars are 640 mm wide and fitted with Ergon GP30 SD grips with bar ends, which provide additional comfort. The stem is adjustable (0–60°) and the Acros AICR internal headset features angle limitation. The rims are DT Swiss HU 1900 CL, with 100/15TA at the front and 135/5QR at the rear, both in size 622x25C. The tyres are Schwalbe Energizer Plus Perf. GreenGuard in size 50-622, which are renowned for their durability and puncture resistance.

The Selle Royal Lookin+ saddle and the KTM COMP II parallelogram seatpost (30.9/350) offer a high level of comfort on long rides. The bike is also fitted with SKS A55K mudguards (55 mm, matt black) and a KTM Type 7 chain guard for the Bosch Gen.4 motor. An adjustable KTM 28" kickstand and a KTM Tour luggage rack (Snap-It 1.0) complete the specification.

The e-bike features the Bosch SMART SYSTEM, which comprises both the motor and the battery, as well as a Bosch LED remote SMART SYSTEM and a Bosch KIOX 300 TFT display for ease of use and clarity. The charger is a Bosch STANDARD Charger 4A SMART SYSTEM. The price of the KTM MACINA STYLE 710 is 5299 EUR, which reflects the bike’s comprehensive specification and high quality.
