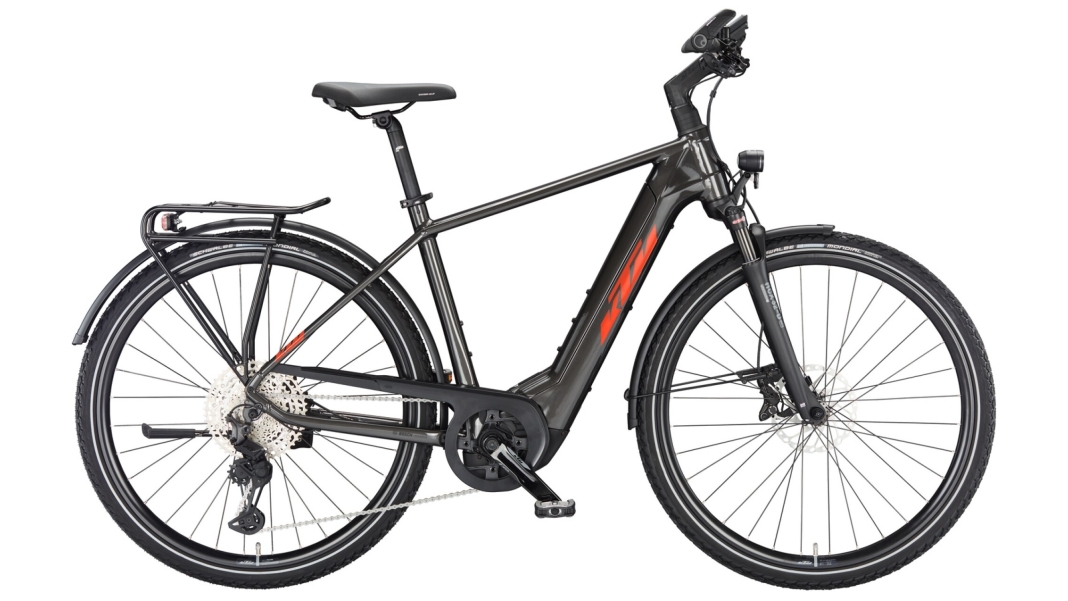

KTM MACINA SPORT 720

The “MACINA SPORT 720” model from KTM, released in 2023, is a high-quality e-bike designed for trekking. It is available at a price of 4399 EUR. The frame is made from Macina Trekking Onroad Alloy 6061 and is fitted with a Bosch Gen.4 drive system, which offers a battery capacity of 750 Wh. The bike’s maximum permissible weight is 145 kg, whilst its kerb weight is 26 kg.

The brakes are Shimano MT402 (3-F) and MT420 4-piston, which ensure reliable braking performance. Gear changes are handled by a Shimano Deore XT M8130-11 LG shadow+ system, which, together with the Shimano Deore XT M8130-11 LG shift lever, enables precise gear selection. The front fork is a Suntour NCX32-D Air LO with 63 mm of travel, ensuring comfort on uneven terrain.

Optimal visibility is provided by the B&M Lumotec IQ-XS LED front light, with a luminous intensity of 100–150 lux, and the B&M Toplight 2C LED rear light. The pedals are VP-616 trekking pedals with an anti-slip coating. The crankset is a KTM E-TEAM ISIS with a length of 170 mm Q16. The cassette is a Shimano LG400-11 with a gear ratio of 11–50.

Power is transmitted via a KMC e11 Sport EPT e-bike chain. The handlebars are KTM Line low risers, 640 mm wide, whilst the Ergon GP30 SD grips with bar ends provide additional comfort. The stem is a KTM +20° ICR, and the headset is an Acros AICR internal 1.1/8"-1.5" angle limit.

The wheel combination consists of a KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black at the front and a KTM Line - Shimano UR600 CL 32H 135-5QR / Ryde Rival Sport 32H 622x25C / DT Alpine II 2.34 black. Both tyres are Schwalbe Marathon Mondial Perf. RaceGuard in size 47-622.

The saddle is a Selle Royal Essenza+, fitted to a KTM Line seatpost measuring 30.9/350. The saddle is clamped using a KTM Line JD-SC99 – 34.9mm clamp. SKS A55K mudguards in matt black protect against splashes and dirt. A KTM Type 7 chain guard for Bosch Gen.4 and an adjustable KTM 28" kickstand are also fitted.

The luggage rack is a lightweight KTM Light (Snap-It 1.0). The motor is a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM with assistance up to 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerTUBE 750Wh SMART SYSTEM, fitted horizontally, and the display is a Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT display SMART SYSTEM. The charger is a Bosch STANDARD Charger 4A SMART SYSTEM.

Overall, the “MACINA SPORT 720” offers high-quality features and high-performance components that ensure a comfortable and efficient ride.
