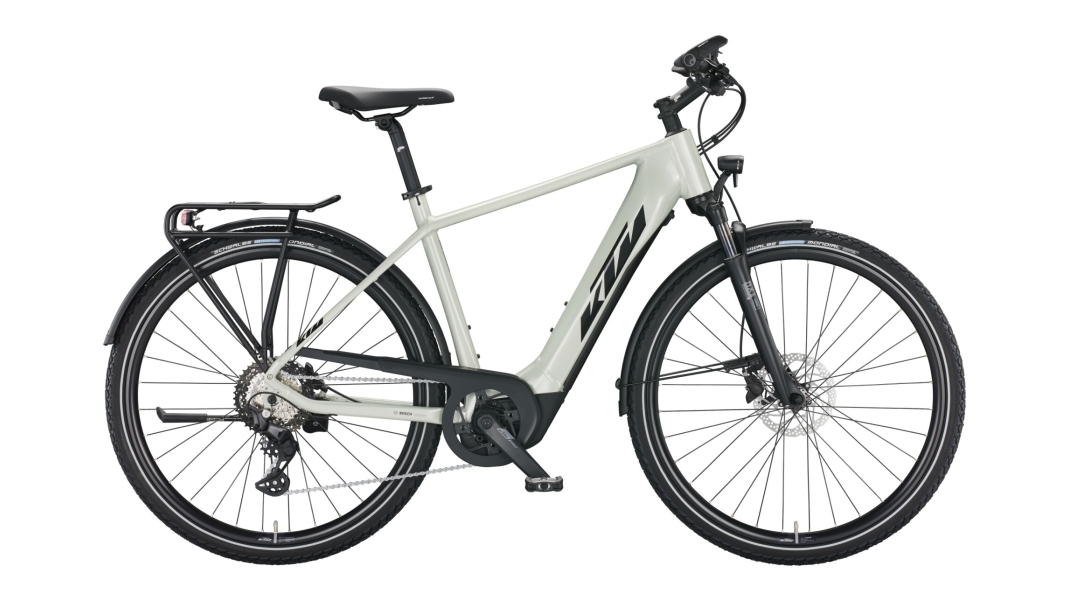

KTM MACINA SPORT 630

The “MACINA SPORT 630” model from the “KTM” brand, released in 2022, is a high-quality e-bike that stands out for its well-designed features and high-performance technology. Priced at 3699 EUR, this bike offers a wide range of features that ensure both comfort and safety.

The e-bike’s frame is made from Macina Trekking Onroad Alloy 6061 and is fitted with a fourth-generation Bosch PowerTube 625Wh battery. The maximum permissible weight is 144 kg, whilst the bike’s unladen weight is 25 kg.

Braking performance is provided by Shimano MT200 brakes with a dual-piston system. The front brake discs are Shimano RT30 CL 180, whilst the rear is fitted with an EM300 CL 160 Magnet. Gear changes are handled by a Shimano Deore M5130-10 LG shadow+ drivetrain, operated via the Shimano Deore M5130-10 LG shift lever.

The Suntour NX1 coil LO fork, with 63 mm of travel, ensures comfortable suspension on uneven terrain. The lighting comprises a B&M Lumotec MYC LED front light with 50 lux and a B&M Toplight 2C LED rear light, which ensures good visibility in the dark.

The pedals are non-slip VP-616 trekking pedals. The crankset is a KTM COMP ISIS 170mm Q16, and the cassette is a Shimano LG600-10 with a gear ratio of 11–43. The drivetrain features a Shimano LG500.

The handlebars are KTM Line low-riser bars, 640 mm wide, complemented by Ergon GP30 SD grips with bar ends. The stem has a 17° angle and is part of the KTM Line series. The headset is a KTM Team Trekking 1.1/8"-1.5" angle limit.

The tyres are Schwalbe Marathon Mondial Perf. RaceGuard 47-622, fitted to both the front and rear. The wheelsets consist of KTM Line – Shimano Deore M6000 CL hubs and Ryde Rival Sport rims, each fitted with DT Champion and DT Alpine II spokes.

The saddle is a Selle Royal Essenza+, mounted on a KTM Line seatpost measuring 30.9/350. SKS A55K mudguards in matt black provide protection against splashes and dirt. A KTM-style chain guard for Bosch Gen.4 and an adjustable kickstand for 28-inch wheels are also included. The luggage rack is a KTM light (snap-it 1.0) model.

The motor is a Bosch PERFORMANCE CX Gen.4 with an output of 85 Nm and provides assistance up to a speed of 25 km/h. The Bosch INTUVIA LCD display with remote control allows for easy control and monitoring of ride data. The battery is charged using a Bosch STANDARD 4A charger.

Overall, the KTM MACINA SPORT 630 offers a balanced combination of performance, comfort and functionality, making it ideal for challenging trekking tours and everyday use.
