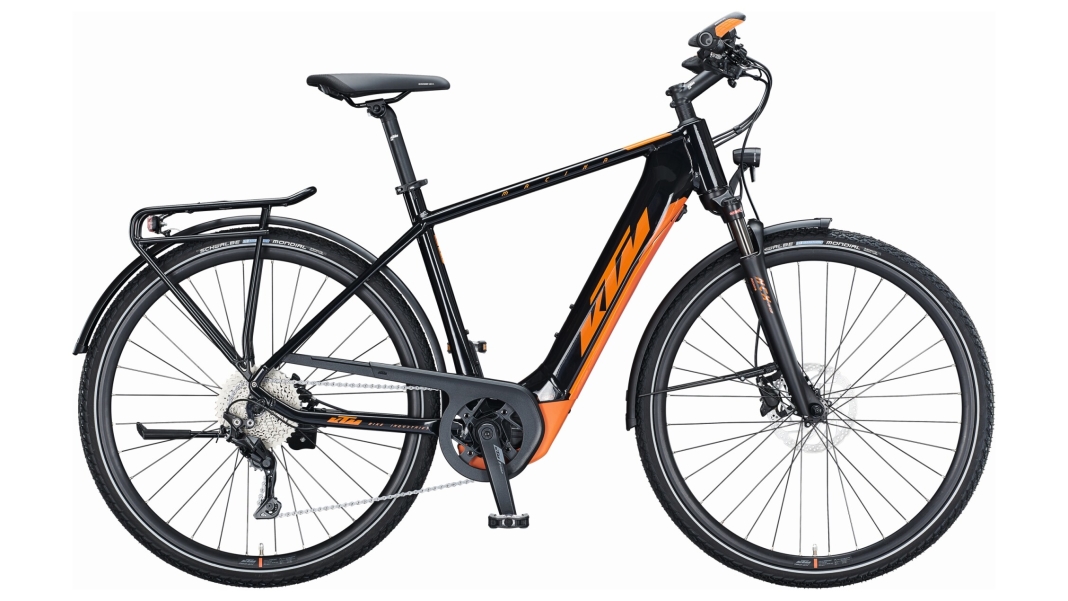

KTM MACINA SPORT 630

The 2021 KTM MACINA SPORT 630 is a high-quality e-bike that stands out for its robust specification and modern technology. Priced at 3299 EUR, it offers good value for money.

The frame of the MACINA SPORT 630 is made from Macina Trekking Onroad Alloy 6061 and is fitted with an integrated fourth-generation Bosch PowerTUBE 625Wh battery. This ensures a long range and an aesthetically pleasing integration of the battery into the frame. The motor, a fourth-generation Bosch PERFORMANCE CX, delivers 85Nm of torque and assists the rider up to a speed of 25 km/h.

The braking system comprises Shimano MT200 brakes with 2-piston calipers and Shimano RT30 CL brake discs measuring 180 mm at the front and 160 mm at the rear. This ensures reliable braking performance in a variety of conditions.

The gear system includes a Shimano Deore M4120-10 SGS Shadow front derailleur and a Shimano Deore M4100-10 shifter with a display. The Shimano Deore M4100-10 cassette offers a gear range of 11–42 teeth, enabling efficient power transfer.

Riding comfort is ensured by the Suntour NCX-D coil LO suspension fork with 63mm of travel. The handlebars – a KTM Line low-riser with a width of 640mm – and the Ergon GP30 SD grips with bar ends provide an ergonomic and comfortable riding position. The stem is a KTM Line with a 17° angle.

The lighting comprises a B&M Lumotec MYC LED front light with 50 lux and a B&M Toplight 2C LED rear light, which ensure good visibility in road traffic. The pedals are non-slip VP-616 trekking pedals.

The wheelset comprises, at the front, KTM Line – Shimano Deore M6000 CL hubs with Ambrosio Track Disc rims and DT Champion 2.0 black spokes, and at the rear, KTM Line - Shimano Deore M6000 CL hubs with Ambrosio Track Disc rims and DT Alpine II 2.34 black spokes. The tyres are Schwalbe Marathon Mondial Perf. RaceGuard in size 42-622, which ensure good handling on a variety of surfaces.

The saddle is a Selle Royal Essenza, mounted on a KTM Line seatpost with a diameter of 30.9mm and a length of 350mm. SKS A55K mudguards in matt black and a KTM chain guard for Bosch Gen.4 provide additional protection against dirt and moisture.

A KTM Racktime Light luggage rack with the Snap-It 1+2 system allows for easy attachment of panniers. The kickstand is an adjustable KTM 28" kickstand.

The Bosch INTUVIA LCD display with remote control offers simple operation and a clear display of all important information whilst riding.

Overall, the KTM MACINA SPORT 630 is a well-equipped e-bike that is ideal for trekking tours and everyday use.
