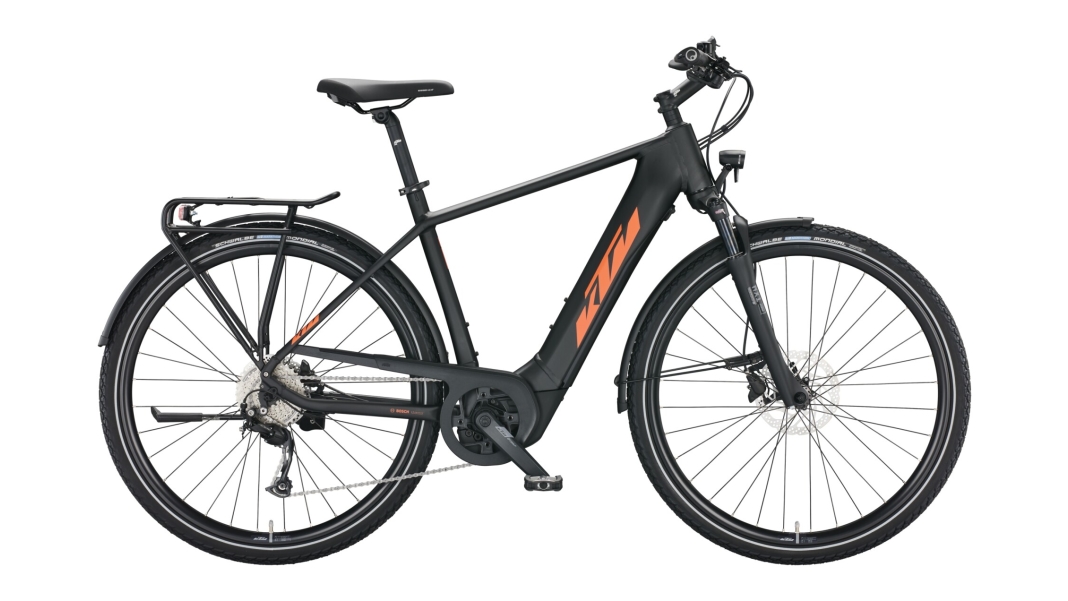

KTM MACINA SPORT 510

The "MACINA SPORT 510" model from KTM, released in 2022, is a high-quality e-bike designed for trekking. It is available at a price of 3299 EUR and offers a wide range of technical features and specifications that make it an excellent choice for discerning riders.

The frame of the MACINA SPORT 510 is made from Macina Trekking Onroad Alloy 6061 and is fitted with a PT625Wh Bosch Gen.4 / T-0450 battery, ensuring stability and durability. The maximum load capacity is 143 kg, whilst the bike itself weighs 24 kg.

Reliable braking performance is provided by the Shimano MT200 / MT200 2-piston brakes, combined with a Shimano RT30 CL 180 brake disc at the front and an EM300 CL 160 magnetic brake disc at the rear. Gear changes are handled by the Shimano Alivio M3100-9 SGS Shadow system, which enables precise and smooth gear changes, controlled via the Shimano Alivio M3100-9 display shifter.

The Suntour NX1 Coil LO fork, with 63 mm of travel, offers comfort and control on a wide variety of terrain. The lighting comprises a B&M Lumotec MYC LED front light with 50 lux and a B&M Toplight 2C LED rear light, which ensure good visibility and safety.

The pedals are VP-616 trekking pedals with an anti-slip coating. The crankset is a KTM COMP ISIS, 170 mm long with a Q-factor of 16. The cassette is a Shimano HG201-9 with a range of 11–36 teeth.

The drive system consists of the Shimano E6070-9 e-bike motor. The handlebars are KTM Line low-riser bars with a width of 640 mm; the grips are Ergon GP1 SD. The stem has a 17° angle, and the headset is a KTM Team Trekking 1.1/8"-1.5" angle limit.

The tyres are Schwalbe Marathon Mondial Perf. RaceGuard, size 47-622, fitted to both the front and rear. The wheelset consists of KTM Line components with Shimano Deore M6000 CL hubs and Ryde Rival Sport rims.

The saddle is a Selle Royal Essenza+, mounted on a KTM Line seatpost measuring 30.9/350. The bike is also fitted with SKS A55K mudguards in matt black, which protect against dirt and spray. A KTM Type 1 chain guard for Bosch Gen.4, an adjustable KTM 28" kickstand and a lightweight KTM Light (Snap-It 1.0) luggage rack round off the specification.

The e-bike’s motor is a Bosch PERFORMANCE CX Gen.4 – 25km/h / 85Nm – which provides powerful assistance. The battery is a horizontally mounted Bosch PowerTUBE 500Wh, and the display is a Bosch INTUVIA LCD with remote control. A Bosch COMPACT charger with 2A is provided for charging.

Overall, the KTM MACINA SPORT 510 offers a well-thought-out combination of performance, comfort and reliability, making it an ideal companion for longer rides and everyday use.
