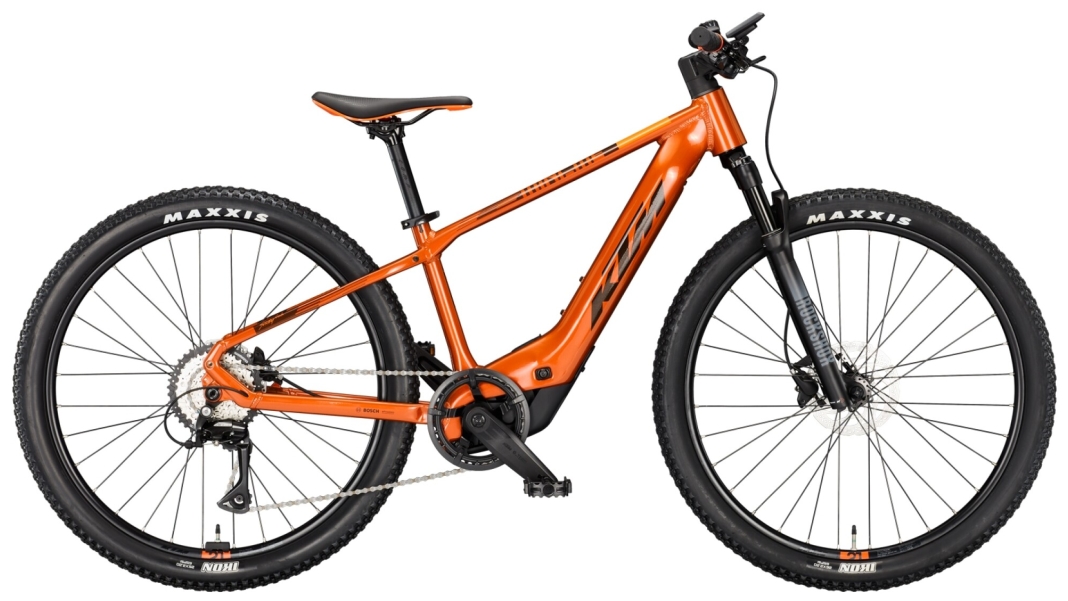

KTM MACINA MINI ME SX 26

The 2024 MACINA MINI ME SX 26 from KTM is a high-quality e-mountain bike designed specifically for discerning riders. The price of 3,199 EUR reflects the high-quality components and advanced technology incorporated into this model.

The bike’s frame is made from Macina MTB 26" 6061 alloy and is fitted with a Bosch BDU31 motor and an M-4050 battery. The maximum permissible weight is 88 kg, whilst the bike itself weighs in at a light 16 kg.

Braking performance is provided by Shimano MT201 / MT200 2-piston brakes with Shimano RT30 CL 160 mm brake discs at both the front and rear. Gear shifting is handled by a Shimano Acera M3020-8 SGS and a Shimano M315-8 shifter. The RockShox Judy Gold RL 26" fork with 80 mm of travel ensures a comfortable and controlled ride on uneven terrain.

The bike is fitted with C280DU aluminium MTB pedals. The crankset consists of a KTM E-TEAM2 ISIS with a length of 152 mm. The cassette is a Shimano HG400-8 with a range of 11–40T. The drivetrain is supported by a Shimano HG40-8 chain.

The handlebars are KTM Comp II low risers with a width of 640 mm, whilst the grips are KTM Comp Lock. The stem is a KTM Team II with a 0° angle and ICR technology, and the headset is an Acros ICR 1.5" with angle limitation.

The rims are different at the front and rear: at the front is a KTM Line – Shimano QC400 CL 32H 100-5QR Ryde Rival21 rim (559x21TC) with DT Champion 2.0 black spokes; at the rear is a KTM Line - Shimano CUES TC500 CL 32H 142-12TA Ryde Rival21 rim (559x21TC) with DT Alpine II 2.34 black spokes. Both wheels are fitted with Maxxis Ikon wire tyres (56-559).

The saddle is a KTM Line Sport, mounted on a KTM Comp II seatpost (27.2/300 mm) and secured by a KTM Line seatpost clamp (31.8 mm).

Power is provided by a Bosch PERFORMANCE SX SMART SYSTEM motor, which assists up to a speed of 25 km/h and delivers a torque of 55 Nm. The battery is a Bosch PowerTUBE with a capacity of 400 Wh, also part of the SMART SYSTEM. It is controlled via the Bosch LED remote SMART SYSTEM and the Bosch INTUVIA 100 LCD display SMART SYSTEM. A Bosch Compact Charger with 2A is used for charging.

Overall, the MACINA MINI ME SX 26 offers an impressive combination of performance, technology and comfort, making it an excellent choice for e-mountain bike enthusiasts.
