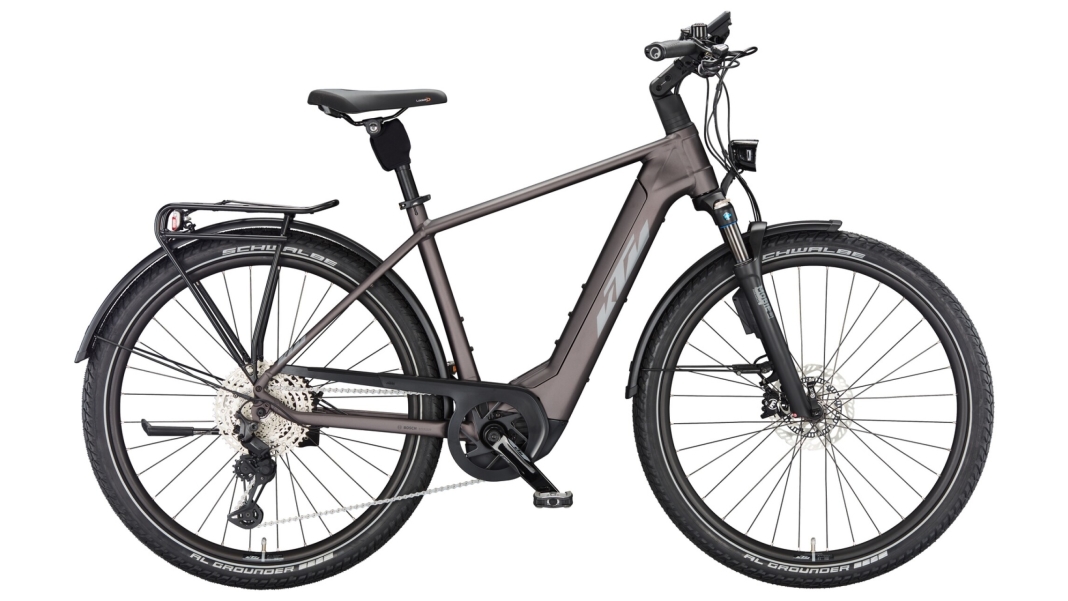

KTM MACINA GRAN 710 ABS

The 2023 "MACINA GRAN 710 ABS" from KTM is a high-quality e-bike that stands out thanks to its first-class technical specifications and features. Priced at 5399 EUR, this model offers a wide range of features that guarantee both comfort and performance.

The e-bike’s frame is made from Macina Trekking Onroad Alloy 6061 and is fitted with a Bosch Gen.4 motor, which has a battery capacity of 750 Wh. This powerful motor enables an assisted speed of up to 25 km/h with a torque of 85 Nm. The bike’s maximum load capacity is 148 kg, whilst its kerb weight is 28 kg.

Safety and control are ensured by the Magura CT Disc ABS 4-piston braking system. The drivetrain features a Shimano Deore XT M8130-11 LG Shadow+, which, in combination with the Shimano Deore XT M8130-11 LG shifter, enables precise gear changes. The Suntour Mobie34 Air 29" fork, with 80 mm of travel and 15QLC Taper, ensures a comfortable ride even on uneven terrain.

The e-bike’s lighting is also of high quality: the B&M Lumotec IQ-XL LED front light offers a luminous intensity of 300+250 lux, whilst the B&M Type 340 brex LED rear light ensures good visibility in road traffic. The VP-616 trekking pedals are non-slip and contribute to safety.

The crankset consists of a KTM E-TEAM ISIS 170mm Q16, and the cassette is a Shimano LG400-11 with a range of 11–50. The drivetrain is powered by a KMC e11 Sport EPT e-bike chain. The Ergotec Lady Town GH16 handlebars are 630 mm wide and fitted with Ergon GP1 SD grips, which provide additional comfort. The stem is adjustable (0–60° ICR) and the headset is an Acros AICR internal model with an angle-limiting system.

The rims are configured differently at the front and rear: front – KTM Line – Shimano Deore M6010 CL 32H 100-15TA / Ryde Rival30 32L 622x30C / DT Champion 2.0 black; rear – KTM Line - Shimano UR600 CL 32H 135-5QR / Ryde Rival30 32L 622x30C / DT Alpine II 2.34 black. Both tyres are Schwalbe Al Ground Perf. RaceGuard 60-622, which provide excellent traction and puncture protection.

The saddle is a Selle Royal Lookin+ and the seatpost is a Suntour SP17-NCX suspension seatpost measuring 30.9/350, which offers additional comfort. The seatpost clamp is a KTM Line JD-SC99 – 34.9mm. For added protection and functionality, the bike is fitted with SKS A69R mudguards in matt black, a KTM Type 7 chain guard for Bosch Gen.4 and an adjustable KTM 28" kickstand. The luggage rack is a lightweight KTM Light (Snap-It 1.0).

The e-bike is controlled by the Bosch SMART SYSTEM, which consists of a Bosch LED remote SMART SYSTEM and a Bosch KIOX 300 TFT display. The battery has a capacity of 750 Wh and is charged using a Bosch STANDARD Charger 4A SMART SYSTEM.

In summary, the “MACINA GRAN 710 ABS” from KTM offers a comprehensive package of performance, comfort and safety, making it ideal for discerning e-bike riders.
