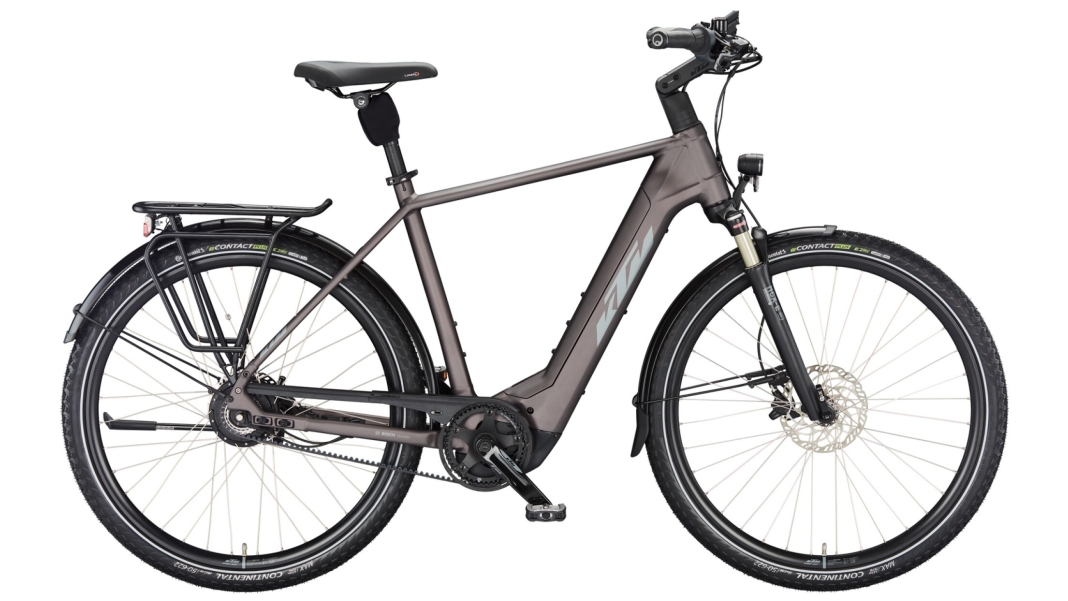

KTM MACINA CITY 710 belt

The 2023 KTM MACINA CITY 710 belt is a high-quality e-bike designed for urban use, characterised by its well-thought-out features and first-class build quality. Priced at 5499 EUR, this model offers a wide range of technical features that ensure both comfort and performance.

The frame of the MACINA CITY 710 belt is made from Macina City Alloy 6061 and is designed to accommodate the Bosch Gen.4 motor with a PowerTube battery capacity of 750 Wh. The maximum permissible weight is 149 kg, whilst the bike itself weighs 29 kg.

Magura CT disc brakes ensure reliable braking performance. The gear system is controlled via an Enviolo Controller Twist Display Pro, which allows for stepless adjustment of the gear ratio. Front suspension is provided by the Suntour NCX-E Air LO fork with 63 mm of travel and a 15QLC thru-axle.

In terms of lighting, the e-bike is fitted with a B&M Lumotec IQ-XS LED front light, which offers a brightness of 100–150 lux, and a B&M Type 340 brex LED rear light. VP-616 trekking pedals with an anti-slip coating ensure a secure grip. Power is transmitted via a Gates drive belt with a 125T CDX sprocket, combined with a Gates rear sprocket with 24 teeth.

Ergonomic comfort is enhanced by a KTM Line Noirette Plus handlebar, 660 mm wide, and Ergon GP1 short grips without bar ends. The stem is adjustable from 0 to 60 degrees (KTM adjust. 0–60° ICR) and the headset is an Acros AICR internal model with angle limitation.

The front wheel features a KTM Line rim - Shimano Deore M6010 CL 36H hub, whilst the rear is fitted with an Enviolo TR-380% 6-bolt hub; both are combined with Ambrosio Sport 25 rims and DT Champion and DT Alpine II spokes respectively. The tyres are Conti e-Contact Plus in size 50-622 Reflex, front and rear.

Additional comfort is provided by the Selle Royal Lookin+ saddle in combination with the Suntour SP17-NCX suspension seatpost (30.9/350 mm). The saddle is clamped using a KTM Line JD-SC99 clamp with a diameter of 34.9 mm. SKS B55 mudguards in a gloss black finish with a spoiler and an SKS Chainblade chain guard offer additional protection against dirt and moisture.

The bike also features a KTM 28" adjustable kickstand and a KTM Tour luggage rack (Snap-It 1.0). Power is provided by the Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor, offering assistance up to 25 km/h and a torque of 85 Nm. The system is powered by a Bosch PowerTUBE battery with a capacity of 750 Wh and controlled via a Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT display SMART SYSTEM. The charger is a Bosch STANDARD Charger 4A SMART SYSTEM.

In summary, the KTM MACINA CITY 710 belt offers a balanced blend of performance, comfort and safety, making it an ideal companion for everyday urban life.
