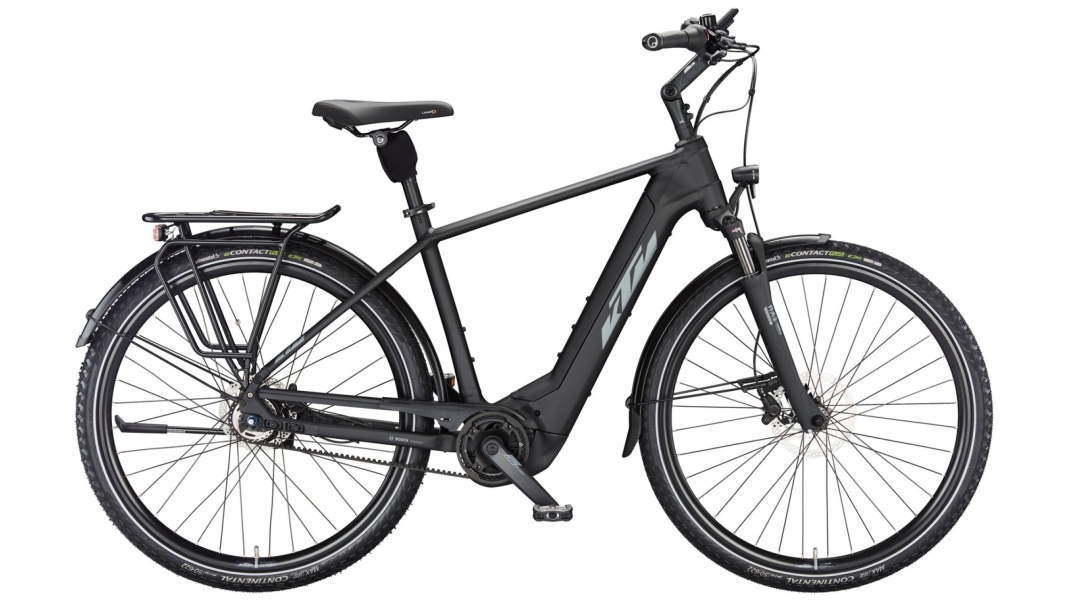

KTM MACINA CITY 610 belt

The “MACINA CITY 610 belt” model from KTM, released in 2023, is a high-quality e-bike characterised by its versatile features and robust construction. The price for this model is 4499 EUR. The frame is made from Macina City Alloy 6061 and is designed to be powered by a Gates 122T CDX drive belt. The maximum permissible weight is 147 kg, whilst the e-bike itself weighs 27 kg.

The braking system comprises Shimano MT402 (3-F) / MT410 2-piston brakes, which ensure reliable deceleration. The gear lever is a Shimano Nexus 5 Revoshifter, which allows for easy and precise gear selection. The Suntour NCX32-D coil LO 63mm fork offers comfort and control on uneven roads and paths.

Lighting is provided by the B&M Lumotec MYC LED 50Lux front light and the B&M Toplight 2C LED rear light, which ensure good visibility even in poor lighting conditions. The pedals are VP-616 trekking pedals with an anti-slip coating, which ensure a secure grip.

The crankset is a KTM E-COMP ISIS 170mm Q16, combined with a Gates 28T rear sprocket. The handlebars are KTM Line Noirette Plus 660mm with Ergon GP1 short grips (without bar ends), which ensure comfort and ergonomics. The stem is a KTM Line UP3, adjustable from 0–90°, allowing for individual adjustment of the handlebar position.

The Acros AICR internal 1.1/8"-1.5" angle limit headset ensures precise steering. The rims are KTM Line – Shimano Deore M6000 CL 36H at the front and Shimano Nexus 5 Disc CL 36H at the rear, combined with Ambrosio Sport 25 700C and DT Champion or DT Alpine II spokes respectively. The tyres are Conti e-Contact Plus 50-622 Reflex, which provide good grip and puncture resistance.

The saddle is a Selle Royal Lookin+, mounted on a Suntour SP17-NCX suspension seatpost measuring 30.9/350 mm, which offers additional comfort. The saddle clamp is a KTM Line JD-SC99 – 34.9 mm. SKS B55 mudguards in high-gloss black with a spoiler protect against dirt and spray. An SKS Chainblade chain guard and an adjustable KTM 28" kickstand are also fitted.

The luggage rack is a KTM Tour (Snap-It 1.0), which offers versatile transport options. The bike is powered by a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor with a top speed of up to 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerTUBE 625Wh SMART SYSTEM, fitted horizontally, which enables a long range. The display is a Bosch LED Remote SMART SYSTEM / Bosch INTUVIA 100 LCD Display SMART SYSTEM, which clearly shows all the key information. The charger is a Bosch STANDARD Charger 4A SMART SYSTEM.

Overall, the KTM MACINA CITY 610 belt offers a balanced combination of performance, comfort and functionality, ideal for urban use and longer rides.
