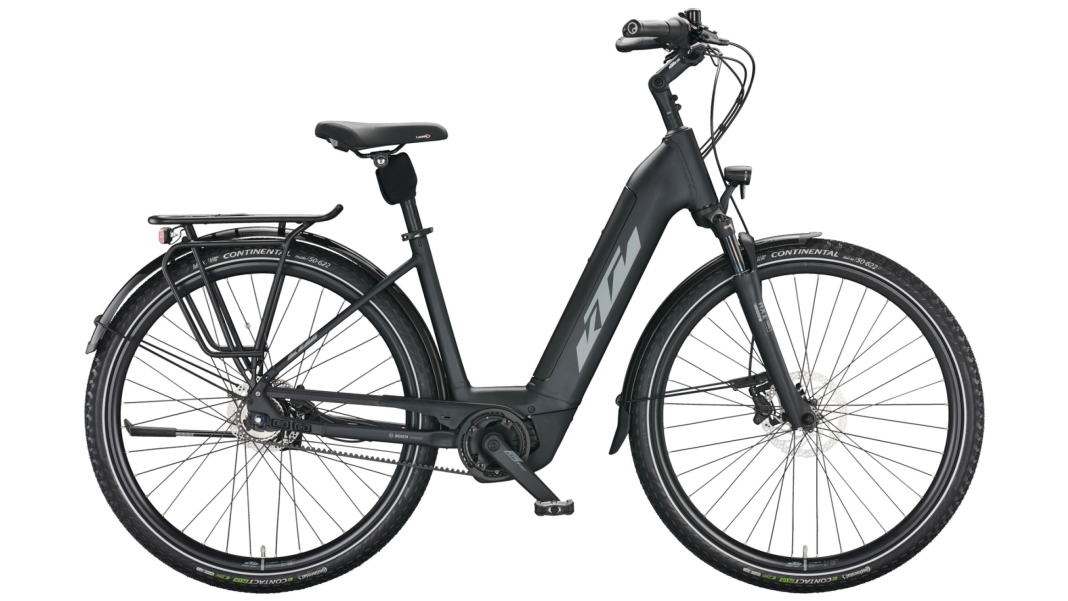

KTM MACINA CITY 610 belt

The "MACINA CITY 610 belt" model from KTM, released in 2022, is a high-quality e-bike designed for urban use and priced at 4099 EUR. The frame is made from Macina City US Alloy 6061 and is fitted with a Bosch Gen.4 motor, which delivers 85Nm of torque and supports a maximum speed of 25km/h. The integrated Bosch PowerTUBE battery has a capacity of 625 Wh, which is sufficient for extended journeys around town.

The bike’s maximum permissible weight is 147 kg, whilst its kerb weight is 27 kg. The braking system consists of Shimano MT402 brakes at the front and MT410 2-piston brakes at the rear, combined with Shimano RT30 CL brake discs measuring 180 mm at the front and 160 mm at the rear, ensuring reliable braking performance.

The gear system is controlled by a Shimano Nexus hub gear, operated via a Shimano Nexus 5 Revoshifter. The suspension fork is a Suntour NX1 coil LO with 63 mm of travel, providing extra comfort on uneven city streets.

Lighting is provided by a B&M Lumotec MYC LED with 50 lux at the front and a B&M Toplight 2C LED at the rear, ensuring good visibility even in the dark. The pedals are non-slip VP-616 trekking pedals. Power is transmitted via a Gates drive belt with a 120T CDX toothed belt and a Gates rear sprocket with 28 teeth.

The handlebars are KTM Line Noirette Plus, 660 mm wide, combined with Ergon GP1 grips without bar ends. The stem is adjustable from 0–90° and is from the KTM Line UP3 series. The headset is a KTM Team Trekking with an angle-limiting system.

The tyres are Conti e-Contact Plus in size 50-622 Reflex, fitted to a wheelset comprising KTM Line - Shimano Deore M6000 CL hubs at the front and Shimano Nexus 5 Disc CL hubs at the rear, each combined with Ambrosio Sport 25 rims and DT Champion or DT Alpine II spokes respectively.

The saddle is a Selle Royal Lookin+, fitted to a Suntour SP17-NCX suspension seatpost measuring 30.9/350 mm. SKS B55 mudguards in high-gloss black with spoilers provide protection against spray and dirt. An SKS Chainblade chain guard provides additional protection for the drivetrain.

The luggage rack is a KTM Tour model with the Snap-it 1.0 system, which allows bags and baskets to be easily attached. An adjustable KTM kickstand for 28" wheels ensures the bike stands securely when parked.

The Bosch INTUVIA LCD display with remote control allows for easy control and monitoring of all key riding information. A Bosch COMPACT charger with a 2A output is used to charge the battery.

Overall, the MACINA CITY 610 belt offers a well-thought-out combination of comfort, performance and functionality for everyday use in the city.
