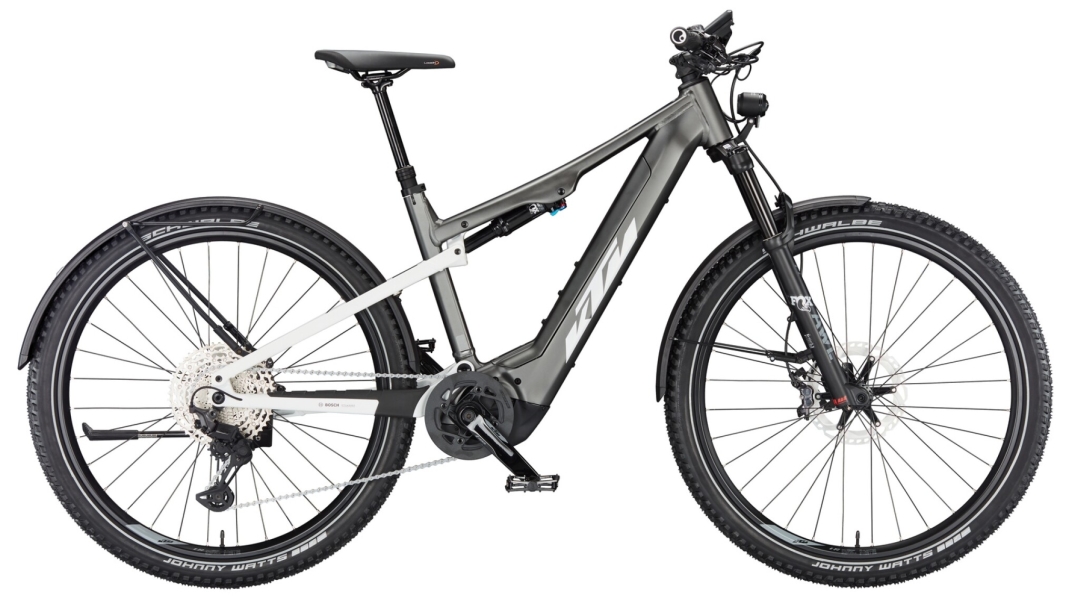

KTM MACINA CHACANA LFC

The "MACINA CHACANA LFC" model from KTM, released in 2023, is a versatile e-mountain bike that stands out for its high-quality components and advanced technology. Priced at 6199 EUR, this bike offers a wide range of technical features that are suitable for both challenging trails and everyday use.

The frame is constructed from a robust Macina Chacana 29" Alloy6061 SLL-E 125mm UDH design and is designed for the Bosch Gen.4 system. The maximum permissible weight is 148 kg, whilst the bike itself weighs in at 28 kg.

Reliable braking performance is provided by the Shimano Deore XT T8100 / M8120 4-piston brakes. The derailleurs and shifters are also from the Shimano Deore XT series – specifically the M8130-11 LG shadow+ model, which enables precise gear changes. The suspension fork is a FOX 34 Float AWL 29" e-bike with 130mm of travel and a 15x110mm thru-axle system, whilst the rear shock is a FOX Float DPS Performance 230x57.5, which provides additional comfort and control.

Lighting is provided by the Litemove AE-130 LED front light, with a brightness of 90–130 lux on high beam. The bike is fitted with MTB flat VPE-527 aluminium pedals. The crankset is a KTM E-TEAM ISIS with a length of 170mm and a Q-factor of 16. The cassette is a Shimano LG400-11 with a gear ratio of 11–50, and the drivetrain uses a KMC e11 Sport EPT e-bike chain.

The handlebars are KTM COMP II Trail35 rizer15 with a width of 760mm, complemented by Ergon GA20 grips and a KTM TEAM II Trail35 stem. The headset is an Acros AICR internal 1.1/8"-1.5" angle limit model. The rims are configured differently at the front and rear: at the front, a combination of KTM Line – Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black, whilst at the rear there is a combination of KTM Line – Shimano MT400B CL 32H 148-12TA / Ambrosio E30 Trail 32H 622x30TC / DT Alpine II 2.34 black.

The tyres are Schwalbe Johnny Watts Perf. DD RaceGuard 60-622, fitted to both the front and rear. The saddle is a Selle Royal Lookin Athletic model, fitted to a KTM COMP II internal dropper seatpost with a KTM Line JD-SC140A – 35.0mm saddle clamp.

Additional features include Racktime aluminium mudguards with a width of 72mm and B&M Xeltec, a KTM 28" adjustable kickstand, and an Alumee alloy luggage rack with fender rails and a platform option. The bike is powered by a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor, which delivers a top speed of up to 25 km/h and a torque of 85 Nm. The battery has a capacity of 750 Wh and utilises the Bosch PowerTUBE SMART SYSTEM in a horizontal configuration. The display is a Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT display SMART SYSTEM, and the charger is a Bosch STANDARD Charger 4A SMART SYSTEM.

Overall, the MACINA CHACANA LFC offers a well-thought-out combination of performance, comfort and versatility, making it an attractive option for e-mountain bike enthusiasts.
