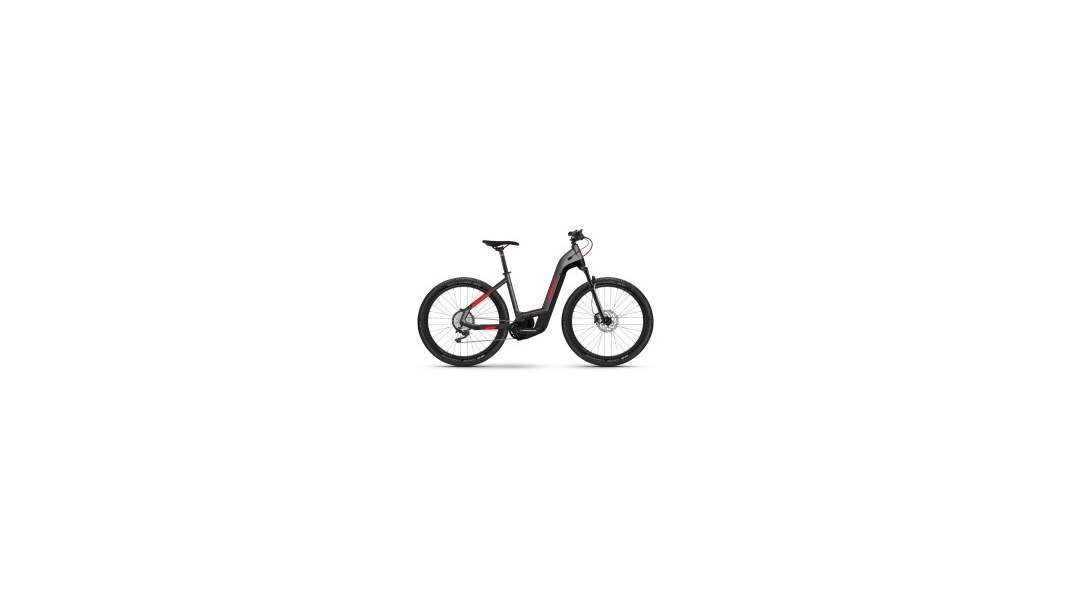

Haibike Trekking 9 Cross
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The Haibike Trekking 9 Cross 2023 is a high-quality trekking bike that stands out for its robust construction and high-performance features. The frame is made of aluminium and features an M12 (1.00) x 148mm thru-axle as well as a post-mount disc brake. The maximum load capacity is 130 kg, making the bike suitable for heavier loads too.
For the brakes, Haibike has opted for the Shimano MT410, which are made of aluminium and have a diameter of 180 mm. The brake levers are also from Shimano – the MT402 model – and are likewise made of aluminium. The drivetrain is a Shimano Deore M5100 with 11 speeds, operated via a Shimano Deore M5100 trigger shifter.
The RockShox Recon RL Remote Lockout fork offers 100mm of travel and features a steel steerer tube that tapers from 1 1/8" to 1 1/2". The fork is also fitted with a 15 x 100mm thru-axle. The pedals are VP E461 aluminium models and feature reflectors.
The crankset is also made of aluminium and has a size of 40, whilst the cassette is a Shimano M5100 with 11–51 teeth. Power is transmitted via a KMC X11e chain. The handlebars are Haibike Components TheBar ++ with a width of 740mm, and the grips are XLC Comfort bo3. The stem is a Haibike Components TheStem ++, A-Head, with a clamp diameter of 31.8 mm and an angle of 12˚. The headset is an A-Head Alloy Tapered.
The rims are Rodi Tryp 30, eyeleted and made of aluminium. The tyres are Schwalbe Smart Sam Performance, size 65-584. The front and rear hubs are Shimano MT400-B, and the spokes are black Sapim Leader spokes.
The saddle is a Haibike Components TheSaddle, whilst the seatpost is a Haibike Components TheSeatpost ++, with a diameter of 34.9mm and also made of aluminium. An adjustable Ursus Mooi kickstand completes the specification.
The bike is powered by a Bosch Performance CX GEN4 motor with an output of 250W and a torque of 85Nm, which provides assistance up to a speed of 25km/h. The battery is a Bosch PowerTube with a capacity of 625 Wh and is charged using the Bosch Standard Charger 4A. The display is a Bosch Intuvia.
The price for the Haibike Trekking 9 Cross 2023 is 4199 EUR.
Equipment
| Brakes | Shimano MT410, aluminium, 180mm |
| Brake levers | Shimano MT402, aluminium |
| Frame | Aluminium, M12 (1.00) x 148 mm thru-axle, post-mount disc brake |
| Drivetrain | Shimano Deore M5100, 11-speed |
| Shift levers | Shimano Deore M5100, trigger shifters |
| Fork | RockShox Recon RL Remote Lockout, air, travel: 100mm, steel steerer tube 1 1/8" – 1 1/2" tapered, 15 x 100mm thru-axle |
| Crankset | Aluminium, 40 |
| Sprocket | Shimano M5100, 11–51 teeth |
| Drive | KMC X11e |
| Headset | A-Head Alloy Tapered |
| Handlebar | Haibike Components TheBar ++ 740mm |
| Grips | XLC Comfort bo3 |
| Stem | Haibike Components TheStem ++, A-Head, bar bore: 31.8mm, 12˚ |
| Saddle | Haibike Components TheSaddle |
| Seatpost | Haibike Components TheSeatpost ++, Patent, 34.9mm, aluminium |
| Rims | Rodi Tryp 30, eyeletted, hollow-section rim, aluminium |
| Tires | Schwalbe Smart Sam Performance, 65-584 |
| Front hub | Shimano MT400-B |
| Rear hub | Shimano MT400-B |
| Spokes | Sapim Leader, black |
| Pedals | VP E461 Aluminium, with reflector |
| Kickstand | Ursus Mooi, adjustable |
| Motor manufacturer / model | Bosch Performance CX GEN4, 250W, 85Nm, 25km/h |
| Display | Bosch Intuvia |
| Battery | Bosch PowerTube |
| Battery capacity (Wh) | 625 |
| Charger | Bosch Standard Charger 4A |
