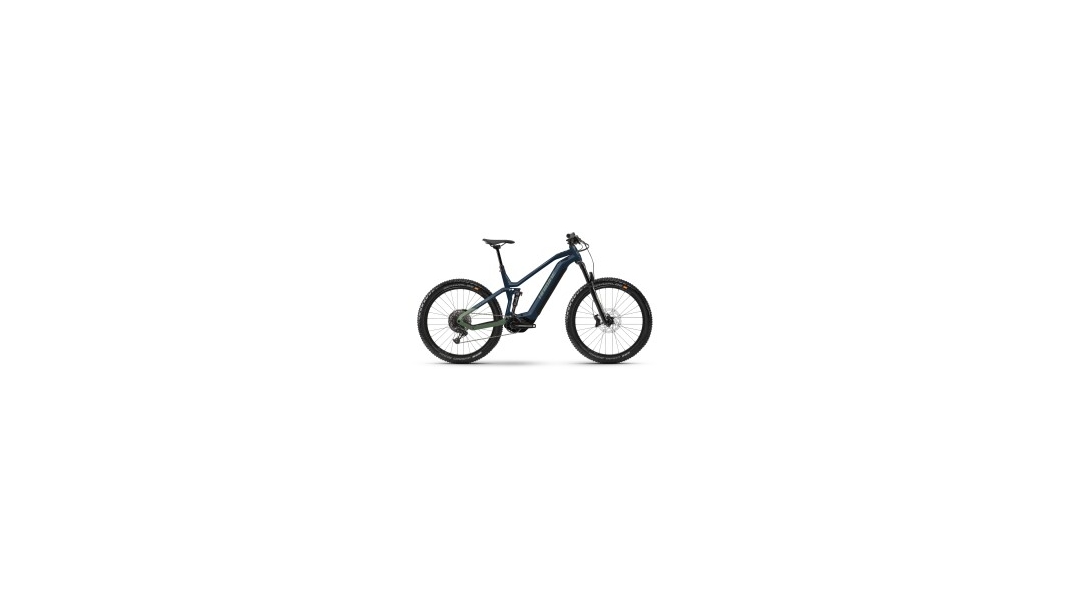

Haibike ALLTRAIL 9 27.5

The 2023 Haibike ALLTRAIL 9 27.5 is a versatile and high-performance e-mountain bike, designed specifically for challenging trails and off-road adventures. Priced at 5699 EUR, it offers an impressive combination of high-quality components and state-of-the-art technology.

The frame of the ALLTRAIL 9 27.5 is made from robust aluminium and features an M12 (1.00) x 148mm thru-axle as well as a post-mount disc brake mount. The suspension travel is 140mm at both the front and rear, ensuring excellent damping and control on uneven terrain. The bike’s maximum load capacity is 150 kg, providing ample stability and safety.

Braking performance is provided by Shimano MT420 disc brakes with a diameter of 203 mm, which, together with the aluminium Shimano MT401 brake levers, ensure reliable and precise braking power. The drivetrain consists of a SRAM NX Eagle 12-speed system, operated via a SRAM NX Eagle trigger shifter, ensuring smooth and precise gear changes.

The RockShox 35 Gold RL fork, featuring air suspension, a tapered aluminium steerer tube (1 1/8 – 1 1/2'') and a 15 x 110mm Boost thru-axle, offers excellent damping characteristics. This is complemented by the RockShox Deluxe Select Plus air shock, which also ensures optimum suspension performance. The pedals are robust aluminium freeride pedals with reflectors.

The bike’s drivetrain consists of a SRAM SX Eagle crankset with an X-Sync 2 chainring (38 teeth) and a SRAM Eagle PG1210 cassette (11–50 teeth). The handlebars are Haibike Components TheBar +++ with a width of 780mm, whilst the grips are Haibike MTB grips. The stem is the Haibike Components TheStem ++, A-Head, with a bar bore of 31.8mm and an angle of 7˚. The headset is an Acros BlockLock.

The WTB ST i35 TCS hollow-wall rims are fitted with Schwalbe Magic Mary Evo TLE tyres (65-584) at the front and Schwalbe Hans Dampf Evo TLE tyres (65-584) at the rear, ensuring excellent grip and stability. The hubs are Shimano MT400-B models at both the front and rear, and the spokes are black Sapim Race.

The saddle is a comfortable Selle Royal Vivo, mounted on a Dropper-Post Remote telescopic seatpost made of aluminium with a diameter of 34.9mm. The bike is powered by a Yamaha PW-X3 motor with an output of 250W and a torque of 85Nm, which provides assistance up to a speed of 25km/h. The battery is an InTube model with a capacity of 720 Wh, and the display is a Yamaha Side Switch. A 4A fast charger is also included.

Overall, the Haibike ALLTRAIL 9 27.5 is a well-equipped e-mountain bike that is suitable for both beginners and experienced riders looking for a reliable and powerful companion for their off-road adventures.
