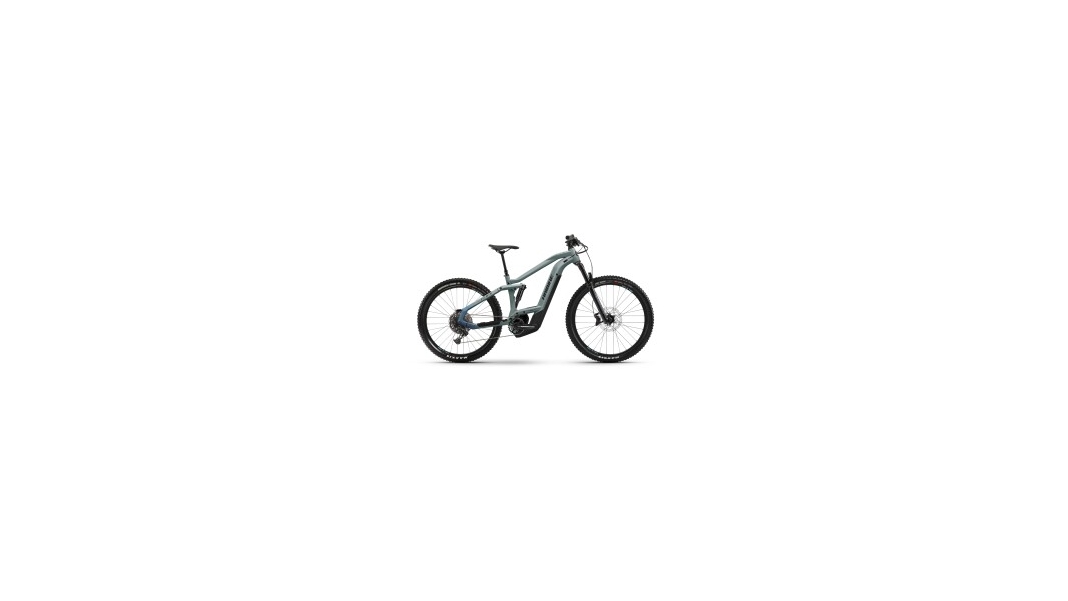

Haibike AllMtn 3

The 2023 Haibike AllMtn 3 is a versatile and high-performance e-mountain bike that stands out for its high-quality components and robust construction. The frame is made from 6061 aluminium and features an M12 (1.75) x 148mm thru-axle and a post-mount disc brake. With 150mm of suspension travel, the frame offers sufficient damping for challenging trails. The maximum rider weight is 120 kg, which highlights the bike’s stability and load-bearing capacity.

The AllMtn 3’s braking system comprises Shimano MT420 brakes with Shimano MT401 aluminium brake levers and 203mm rotors. This combination ensures reliable braking performance and safety in all riding conditions. The drivetrain features the SRAM SX Eagle 12-speed system, operated via an SRAM SX Eagle trigger shifter. This enables precise and rapid gear changes, which are particularly advantageous on varied terrain.

The RockShox 35 Silver fork, featuring a steel spring with 160mm of travel and an aluminium steerer tube (1 1/8 – 1 1/2'' tapered) and a 15 x 110 mm Boost thru-axle, ensures excellent suspension and damping characteristics. The RockShox Deluxe Select air shock perfectly complements the suspension system. The pedals are made of aluminium and fitted with reflectors, offering additional safety when cycling on the road.

The SRAM X-Sync 2 crankset with a 38-tooth chainring and the SRAM Eagle PG1210 cassette (11–50 teeth) ensure efficient power transfer. The handlebars, a Haibike Components TheBar ++ with a width of 780mm, and the Haibike MTB grips offer comfortable and secure handling. The stem is made of aluminium and features an A-Head design with a bar bore of 31.8mm.

The AllMtn 3’s rims are Rodi Tryp 30 hollow-chamber aluminium rims, which are lugged to provide additional stability. The tyres are Maxxis Minion DHF (65-622) at the front and Maxxis Minion DHR II (71-584) at the rear, providing excellent grip and control. The hubs (FR: Shimano MT400-B, RR: Shimano MT400-B) and the black Sapim Leader spokes contribute to the wheelset’s durability and reliability.

The XLC MTB saddle and the Dropper-Post Remote telescopic seatpost (31.6mm, aluminium) ensure comfort and adaptability whilst riding.

The Haibike AllMtn 3 is powered by a Bosch Performance CX GEN4 motor with an output of 250W and a torque of 85Nm, which provides maximum assistance up to a speed of 25km/h. The Bosch PowerTube battery, with a capacity of 625 Wh, ensures a long range, whilst the Bosch Purion display clearly shows all the key information. The Bosch Compact Charger 2A enables efficient charging of the battery.

The Haibike AllMtn 3 is available for €4,999 and offers excellent value for money for ambitious mountain bikers who prioritise quality and performance.
