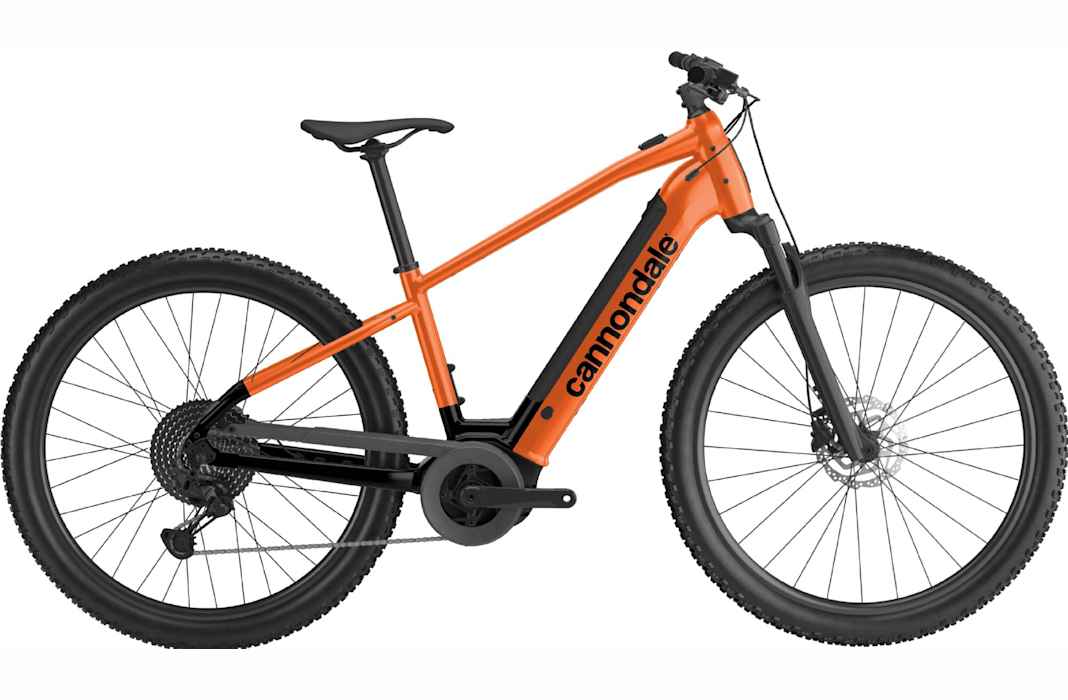

Cannondale Trail Neo 3 2023 Pedelec > MTB > Hardtail

Trail Neo 3

<p>Level Up Fast, fun, and functional. A hardtail e-mountain bike built to tackle any challenge, on the trail or off. HighlightsThe rugged aluminum frame features an integrated front running light, plus mounts for kickstand, rack and fenders.Bosch’s sporty and versatile Performance Line drive unit delivers up to 65Nm of torque, and 300% support, in a quiet, natural feeling way.A removable, 625Wh battery provides tons of range for exploration and adventure.The durable, reliable, Shimano Deore 10-speed group offers smooth shifting and a wide gear range.The Suntour XCM 34 fork features 100mm of travel, and wide, 34mm stanchions for precise steering.<br>Pre-installed light cables</p>


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read articles

Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | TOUR

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Brakes	Shimano MT200 hydraulic disc, 180/180mm RT30/RT-EM300 rotors
Brake levers	Shimano MT200 hydraulic disc
Frame	SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & mudguard mounts
Frame material	Aluminium
Drivetrain	Shimano Deore M4120
Shift levers	Shimano Deore M4100, 10-speed
Drivetrain type	Derailleur
Fork	SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset
Fork travel (mm)	100
Crankset	FSA Bosch Gen3, 170mm, 38T
Sprocket	Shimano Deore, 11-42, 10-speed
Drive	Shimano Deore HG54, 10-speed
Drive type	Chain
Headset	Integrated, 1-1/8 to 1.5", sealed bearings
Handlebar	Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm
Grips	Fabric Funguy
Stem	Cannondale 3, 3D Forged 6061 alloy, 1-1/8", 31.8, 0°
Saddle	Cannondale Ergo XC
Seatpost	Cannondale 3, 6061 Alloy, 31.6x350mm
Rims	WTB STX i25 TCS, 32h, tubeless ready
Front tire	Maxxis Rekon, 29x2.6" (M, L, XL)
Rear tire	27.5x2.6" (S), EXO Protection
Spokes	DT Swiss Champion 2.0
Pedals	Not included
Motor manufacturer / model	Bosch Performance Line
Display	Bosch Purion 200
Battery	Bosch PowerTube, 625Wh
Battery capacity (Wh)	625
Charger	Bosch 4A

Cannondale Trail Neo 3

Equipment
