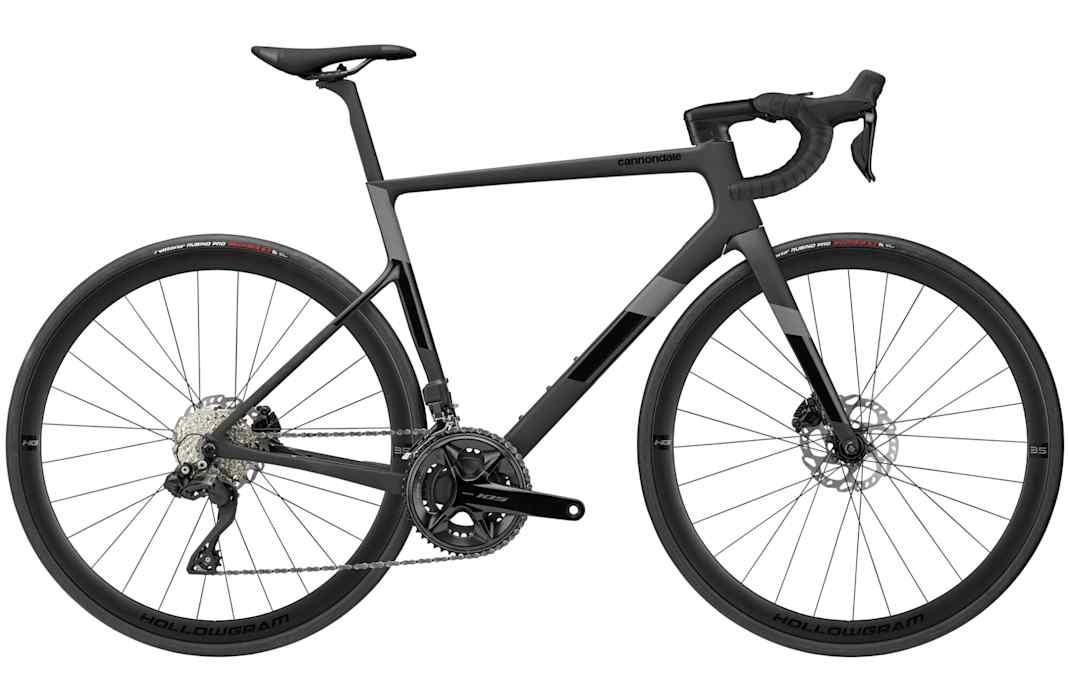

Cannondale SuperSix EVO Carbon Disc 105 Di2

The Cannondale SuperSix EVO Carbon Disc 105 Di2 from 2024 is a road bike that is characterised by its advanced technology and high-quality equipment. The price of the model is EUR 4999. The frame is made of SuperSix Evo Carbon and features integrated cable routing with switchplate, 12x142 Speed Release thru-axle, SAVE technology, PF30a bottom bracket shell and a flat-mounted disc brake as well as an integrated saddle clamp.

Braking is provided by the Shimano 105 7170 hydraulic disc brake system with 160/160 mm RT70 rotors. The brake levers are also from the Shimano 105 Di2 7170 series and offer precise control. Shifting is provided by the Shimano 105 Di2 7150 system, while the shift levers are from the same series. The front derailleur is a Shimano 105 Di2 7150 with Braze-on mounting. The bike has a total of 24 gears.

The fork is also made of SuperSix Evo Carbon with SAVE technology, integrated crown bearing, 12x100 mm Speed Release thru axle, flat-mounted disc brake and internal cable routing. Depending on the frame size, the headset varies between 1-1/8" to 1-1/4" and 1-1/8" to 1-3/8". The bottom bracket is an FSA PF30a BB for 24 mm axles. The crankset is a Shimano 105 7100 with a BSA mount and a 50/34 tooth sprocket. The sprocket is a Shimano 105 7100 with a 12-speed gear ratio of 11-34 teeth.

The steering system consists of a carbon HollowGram SAVE SystemBar with a pitch-adjust angle of 8 degrees and Cannondale bar tape with a thickness of 3.5 mm. The stem is a HollowGram KNØT made of aluminium with cable cover and -6° tilt. The rims are HollowGram 35 made of carbon, tubeless-ready and have a depth of 35 mm and an inner width of 19 mm. The tyres are Vittoria Rubino Pro Bright Black in size 700x25c with reflective stripes.

The hubs are HollowGram, with the front hub having a sealed bearing with a 12x100 mm centrelock mount and the rear hub having a three-pawl sealed bearing with a 12x142 mm centrelock mount. The spokes are HollowGram straight-pull with a thickness of 2.0/1.8/2.0 mm. The saddle is a Prologo Nago RS STN model, and the seatpost is HollowGram 27 SL carbon with a double clamp attachment, a length of 330 mm and an offset of either 0 mm (44-48 cm frame) or 15 mm (51-62 cm frame).

The gross weight of the bike is around 31000 grams. The geometry of the bike includes a reach of 384 mm, a stack of 554 mm, a seat tube length of 515 mm and a top tube length of 546 mm. The head tube angle is 71 degrees, the seat tube angle is 74 degrees, the head tube length measures 153 mm, the chainstay length is 408 mm, the fork front bend measures 55 mm, the standover height is 788 mm and the wheelbase totals 972 mm.
