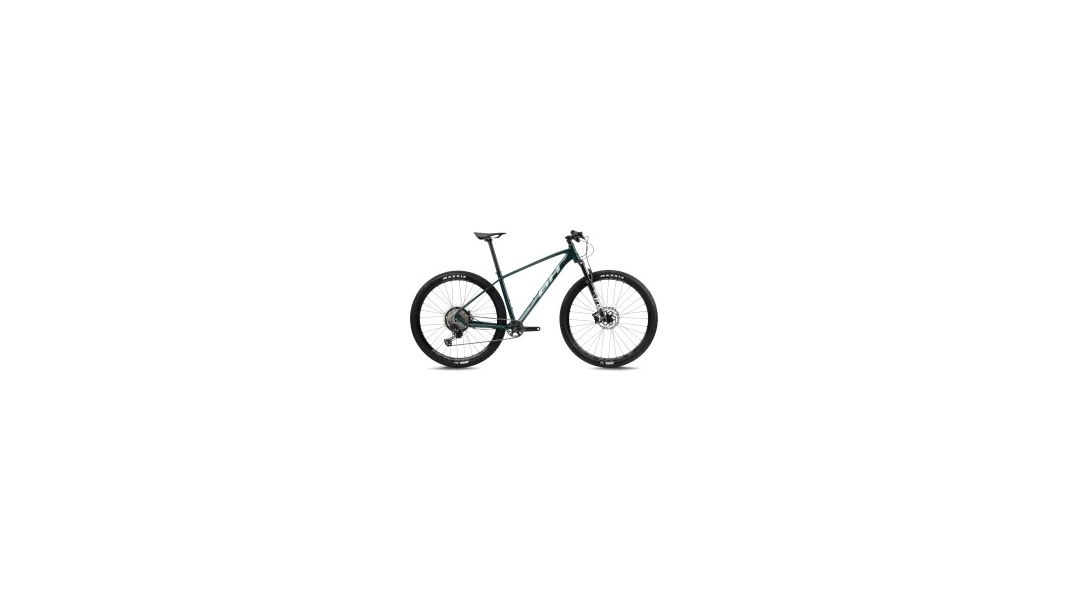

BH Bikes EXPERT 5.5

The "EXPERT 5.5" model from BH Bikes, released in 2023, is a versatile mountain bike that stands out for its high-quality components and solid build quality. The frame is made from a robust aluminium alloy, which contributes to the bike’s durability and stability. The maximum load capacity is 165 kg, whilst the bike itself weighs just 12 kg, making it a lightweight yet sturdy companion.

The “EXPERT 5.5” is fitted with Shimano MT400 brakes featuring 180 mm discs, which ensure reliable braking performance and safety. The drivetrain is a Shimano XT 8100 with 12 speeds, which, in combination with the Shimano Deore 6100 shifter, enables precise and smooth gear changes. The fork is a Fox 32 Rhythm Grip Lock with 100 mm of travel, which ensures optimum damping and control on uneven terrain.

The bottom bracket and crankset are also from Shimano, with the MT510 crankset measuring 175 mm in length. The drivetrain is supported by Shimano Deore components, ensuring reliable power transfer. The handlebars are BH Lite flat with a width of 780 mm, whilst the BH Lock On grips ensure a secure grip. The stem is a BH SL with a length of 80 mm, a diameter of 31.8 mm and a tilt angle of +/-6 degrees.

The “EXPERT 5.5” is fitted with Maxxis Ikon 2.20 or Continental Race tyres, mounted on the BH Lite wheelset, which provide excellent traction and stability. The saddle is a Prologo Nago RS, which, together with the BH Lite seatpost – with a diameter of 31.6 mm and a length of 420 mm – ensures comfort on long rides.

In terms of geometry, the bike offers a reach of 435 mm and a stack of 628 mm. The seat tube is 480 mm long, whilst the top tube measures 622 mm. The head tube angle is 69 degrees and the seat tube angle is 74 degrees, allowing for a balanced riding position. The head tube is 120 mm long and the chainstay length is 435 mm. The bottom bracket height is 310 mm.

The “EXPERT 5.5” from BH Bikes is available at a price of 1,699 EUR and offers an excellent combination of performance, comfort and reliability, making it suitable for both challenging trails and leisurely rides.
