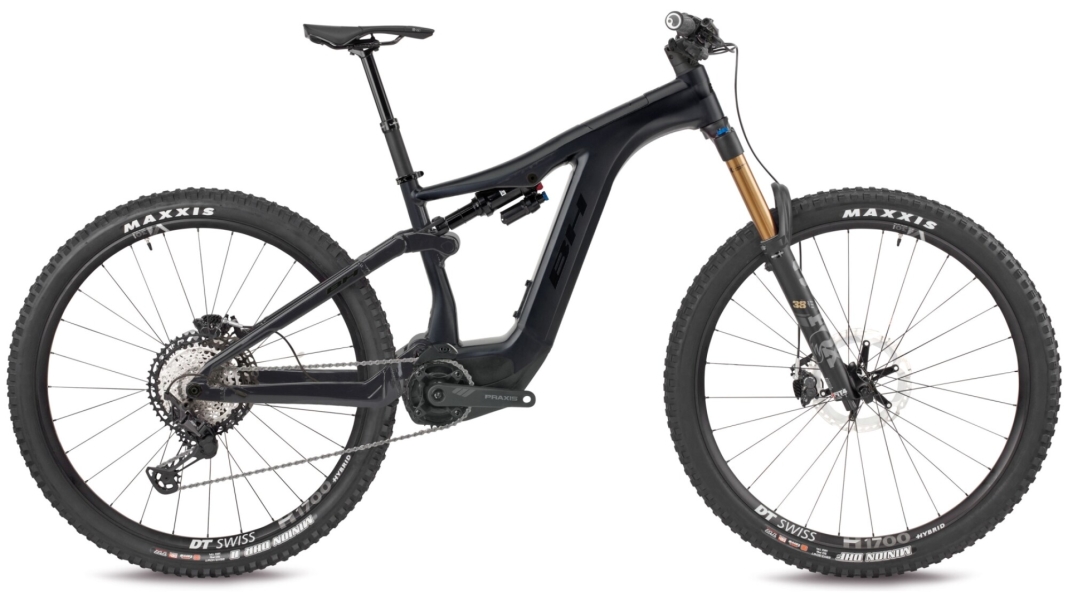

BH Bikes ATOMX LYNX PRO 9.4

The 2023 ATOMX LYNX PRO 9.4 model from BH Bikes is a high-quality e-mountain bike designed for discerning riders. Priced at 7,299 EUR, it offers an impressive combination of advanced technology and top-class specifications. The frame is made from lightweight yet robust carbon fibre, which reduces the bike’s total weight to 24 kg whilst ensuring a high level of stability. The maximum rider weight is 165 kg, making it suitable for a wide range of riders.

The bike features powerful Shimano XT 4-piston brakes with 203 mm rotors at the front and rear, ensuring reliable stopping power. The Shimano XT shifters and 12-speed drivetrain provide precise and smooth gear changes. The fork is a FOX 38 FLOAT Factory with 160 mm of travel, combined with a FOX FLOAT X Performance shock, also with 160 mm of travel, ensuring excellent damping and control on uneven terrain.

The Praxis crankset (32T-165mm) and the Shimano CSM8100 12-speed cassette (10-51T) ensure efficient power transfer. The drivetrain is supported by the Shimano CNM6100 chain. The handlebars are Race Face Aeffect Riser with a width of 780 mm, whilst the grips are Ergon GE1-Factory, providing additional comfort. The stem is a BH Evo 35 Fit, and the headset is from Acros (AZX-581 BL).

The tyres are Maxxis Minion TPI120 Terra EXO TR, fitted to DT Swiss H1700 TR wheelsets. The front and rear hubs are also from DT Swiss, ensuring high reliability and durability. The saddle is a Prologo Proxim W450 Stn, fitted to a Race Face DP Aeffect seatpost with a diameter of 31.6 mm. For added security, the bike is fitted with a lock.

At the heart of the ATOMX LYNX PRO 9.4 is the BROSE SMag motor, combined with an X System battery with a capacity of 720 Wh. The BH i-Remote display allows for easy control and monitoring of the e-bike system. The bike’s geometry is well thought out, with a reach of 470 mm, a stack of 634 mm, a seat tube length of 440 mm and a top tube length of 620 mm. The head tube angle is 65 degrees and the seat tube angle is 76 degrees, resulting in an optimal riding position. The head tube length is 110 mm and the chainstay length is 454 mm, whilst the bottom bracket height is 332 mm.

Overall, the ATOMX LYNX PRO 9.4 from BH Bikes offers an impressive combination of advanced technology, high-quality components and well-thought-out geometry, making it an excellent choice for discerning e-mountain bike riders.
