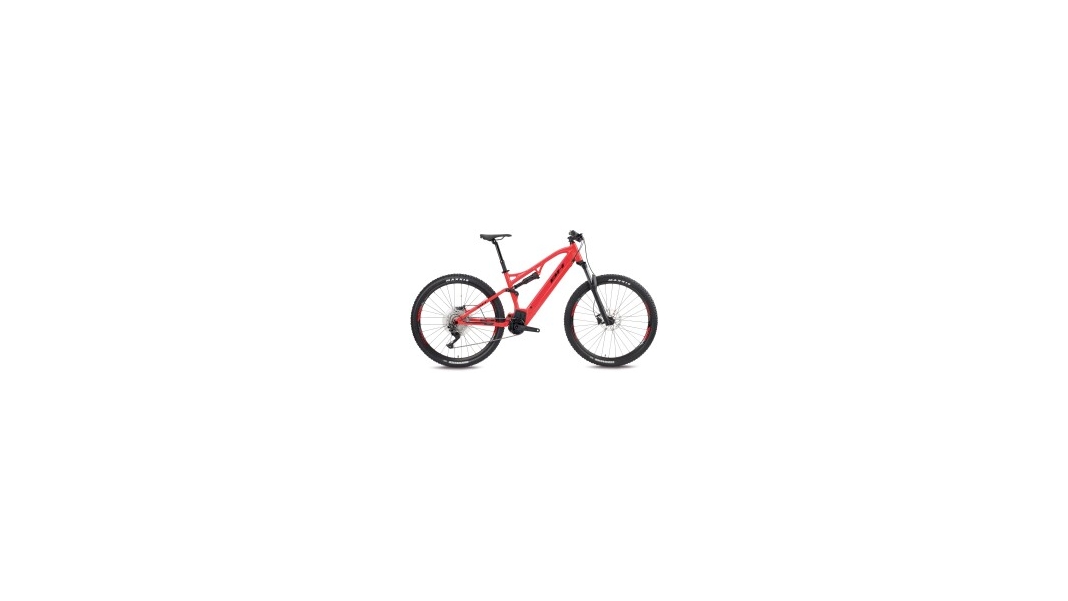

BH Bikes ATOM LYNX 8.1

The 2023 ATOM LYNX 8.1 from BH Bikes is a versatile e-mountain bike, priced at 3,499 EUR. The bike’s frame is made from a robust aluminium alloy and contributes to a total weight of 25 kg. The maximum permissible weight is 165 kg, ensuring a high load-bearing capacity.

Braking performance is provided by Shimano MT420 4-piston brakes with 203 mm rotors at both the front and rear. The brake levers are also from Shimano and offer reliable control. The drivetrain is a Shimano Deore 11-speed system, which, together with the Shimano Deore shifter, ensures precise gear changes. The crankset is a Praxis 34T-165mm, whilst the cassette is a Shimano CSM5100 12-speed (10-51T), which allows for a wide range of gear ratios.

The suspension on the ATOM LYNX 8.1 consists of a Rock Shox Recon RL fork with 150 mm of travel and a Rock Shox Deluxe Debonair rear shock with 140 mm of travel, which together ensure a smooth ride over rough terrain. The handlebars are BH MTB Alloy Riser with a width of 780 mm, complemented by Ergon GE10 grips and a BH Ahead stem. The headset is an Acros AIX-322 OD46.

The wheels are constructed from an alloy double-wall design and fitted with Maxxis Forekaster TPI60 tyres in size 29" x 2.35". The hubs and spokes are made of stainless steel and are also from Shimano, ensuring high reliability and durability.

The saddle, a Prologo Proxim W350 Stn, and the Kind Shock RAGEI seatpost provide comfort on long rides. The seat clamp is made from an aluminium alloy. The bike is also fitted with a winter battery cover.

Power is provided by a BH 1E-36V motor combined with a TS System battery with a capacity of 500 Wh. The BH X Display Lite provides all the necessary information whilst riding.

The frame geometry comprises a reach of 450 mm, a stack of 654 mm, a seat tube length of 480 mm and a top tube length of 630 mm. The head tube angle is 67 degrees, the seat tube angle is 75 degrees, the head tube length is 150 mm and the chainstay length is 464 mm. The bottom bracket height is 332 mm.

Overall, the ATOM LYNX 8.1 offers a well-thought-out combination of performance, comfort and versatility, making it an attractive choice for e-mountain bike enthusiasts.
